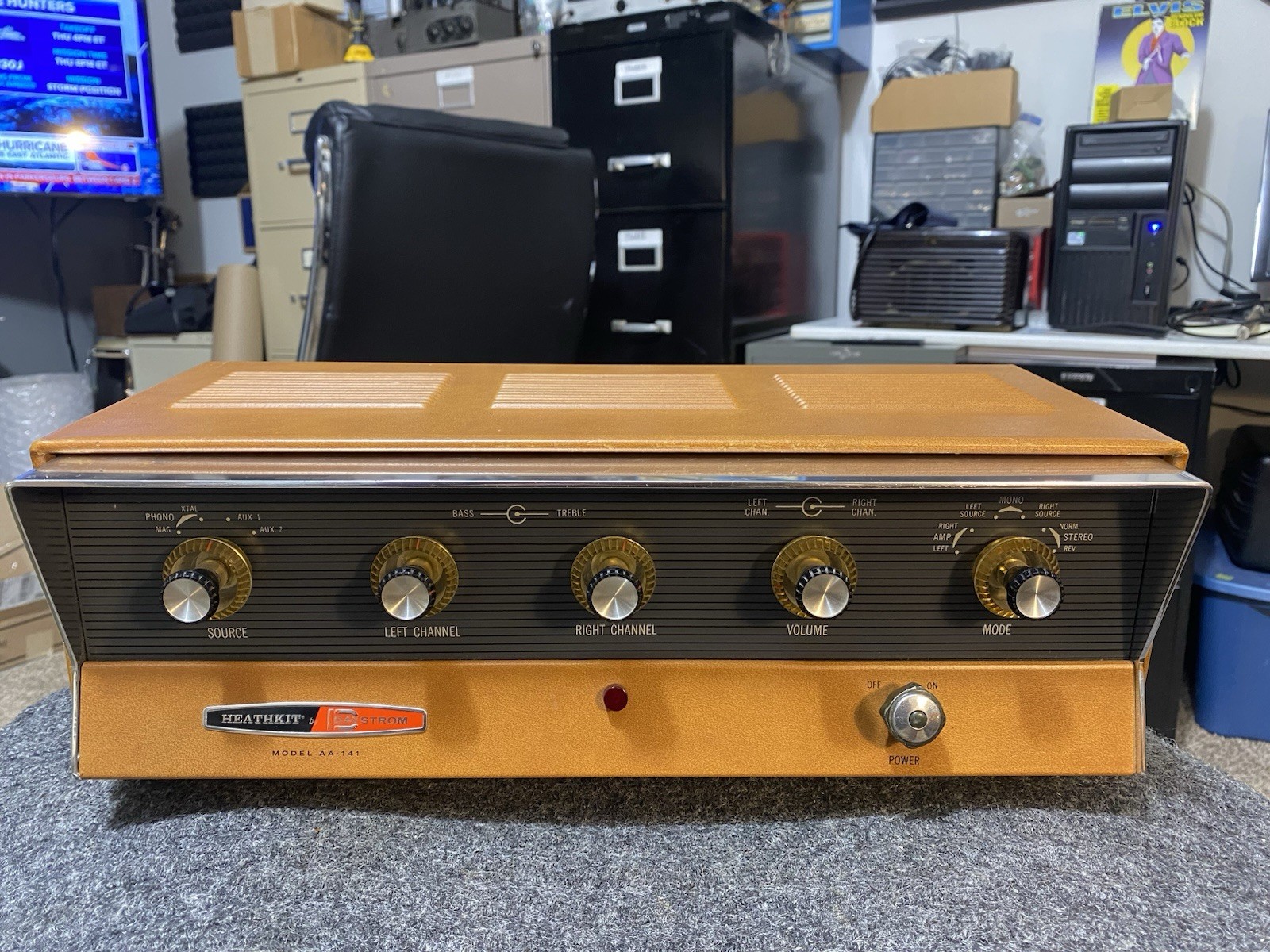

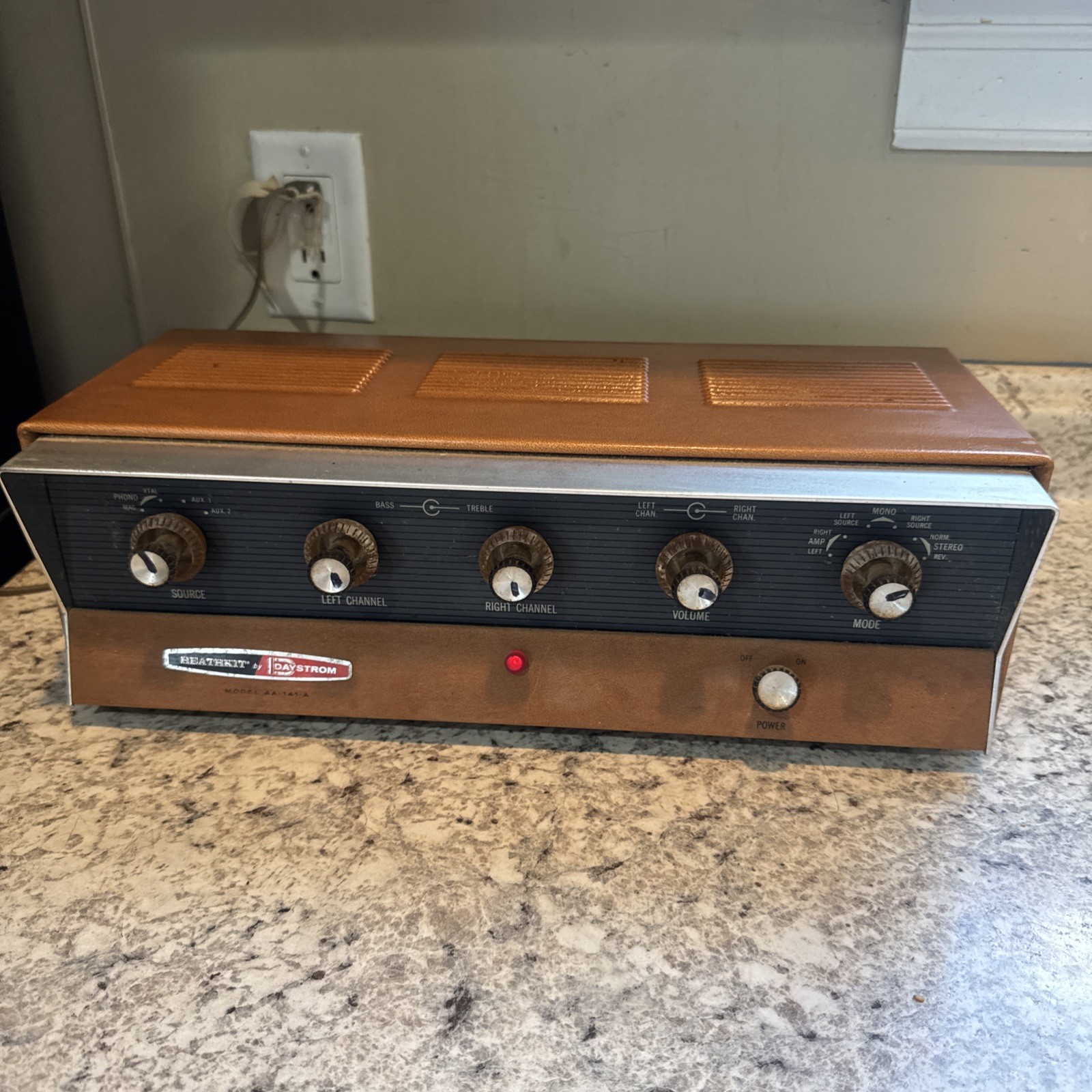

Heathkit AA-141: The Audiophile’s DIY Masterpiece

Name: Heathkit AA-141
Brand: Heathkit

In the golden era of DIY electronics, few names resonated with hobbyists and audiophiles quite like Heathkit. Known for offering high-quality electronic kits that allowed enthusiasts to build everything from radios to test equipment, Heathkit also carved a niche in the high-fidelity audio world. Among their most respected audio offerings was the AA-141 Passive Preamplifier, a unique and often overlooked gem from the late 1970s. Designed not for amplification, but for precise signal routing and volume control, the AA-141 stands out as a testament to minimalist audio engineering and the joy of hands-on construction.

Released in 1977, the AA-141 arrived during a time when audiophiles were beginning to question the sonic colorations introduced by active preamplifiers. Many sought purer signal paths, and passive designs—using only resistors and switches, without active gain stages—emerged as a compelling alternative. Heathkit, ever attuned to the technical interests of its user base, answered the call with a kit that combined precision, simplicity, and the satisfaction of building a critical component of a high-end audio system.

Technical Specifications

The Heathkit AA-41 is a passive preamplifier, meaning it does not amplify the incoming signal. Instead, it uses a precision attenuator to reduce signal level before sending it to a power amplifier. This design eliminates the potential for added noise, distortion, or coloration from active circuitry.

Specification	Detail
Model	AA-141
Manufacturer	Heathkit
Year Introduced	1977
Type	Passive Preamplifier (Kit)
Number of Inputs	4 (RCA)
Number of Outputs	1 (RCA)
Attenuation Range	0 to -54 dB
Step Size	2 dB per step
Control Mechanism	Rotary switch with 28-position precision resistor ladder
Impedance (Input)	47 kΩ
Impedance (Output)	10 kΩ
Power Requirements	None (passive design)
Enclosure	Aluminum chassis with brushed finish
Assembly Time	Approximately 5–7 hours
Kit Number	19K-141

The AA-141 uses a 28-position rotary switch and a carefully engineered resistor network to provide smooth, repeatable volume control. Each step is precisely calibrated at 2 dB, allowing for fine adjustments across its 54 dB attenuation range. The use of high-tolerance metal-film resistors ensures minimal channel imbalance and long-term stability.

Sound Characteristics and Performance

The sonic signature of the AA-141 is defined by what it doesn’t do: it doesn’t add noise, distortion, or coloration. In a world where even high-end active preamps could subtly alter the sound, the AA-141 offered a transparent, neutral signal path that let source components and amplifiers shine unimpeded.

Because it lacks gain, the AA-141 works best in systems where source components have strong output levels (typically 1–2 V) and power amplifiers are sufficiently sensitive. It excels in setups using high-output CD players, phono preamps with built-in gain, or modern DACs. When properly matched, the AA-141 delivers a clean, open soundstage, excellent imaging, and a sense of immediacy that many attribute to its minimalist design.

Its passive nature also means it avoids the phase shifts and bandwidth limitations sometimes introduced by active circuitry. Audiophiles who prize accuracy and fidelity often find the AA-141 delivers a more “direct” connection to the music—like removing a pane of glass from between the listener and the performance.

Notable Features and Innovations

What made the AA-141 special wasn’t just its circuit design, but its embodiment of the Heathkit philosophy: accessible, educational, and empowering.

Kit-Based Assembly: True to form, the AA-141 was sold as a kit. Builders received all components, a detailed instruction manual, and a pre-drilled chassis. The assembly process was designed to be approachable for intermediate hobbyists, with clear schematics and step-by-step guidance.

Precision Attenuator: The heart of the unit is its 28-step rotary switch with a custom resistor ladder. This was no off-the-shelf potentiometer; it was a carefully engineered solution for consistent, channel-balanced volume control—a rarity in passive designs of the era.

High-Quality Construction: Despite its modest price, the AA-141 used robust components: gold-plated RCA jacks, a durable aluminum front panel, and high-stability resistors. The build quality, once assembled, rivaled that of far more expensive commercial units.

Modularity and Expandability: Heathkit enthusiasts often modified their units—adding input selectors, remote control mechanisms (later retrofitted by third parties), or even integrating the AA-141 into custom audio racks. Its open design invited tinkering.

Common Issues and Maintenance

While the AA-141 is mechanically and electrically simple, a few issues can arise over time—especially in units that have been heavily used or improperly stored.

Switch Contact Oxidation: The rotary switch is the most critical component. Over decades, contact oxidation can lead to crackling or channel dropouts. This is usually resolved by careful cleaning with contact cleaner (non-residue type) and gentle rotation to reseat contacts.

Resistor Drift: Though rare, metal-film resistors can drift slightly over 40+ years. If channel imbalance becomes noticeable, checking resistor values with a multimeter is advisable. Replacements are easy to source.

Loose RCA Jacks: Vibration and repeated plugging can loosen the RCA jacks. Tightening the mounting nuts from the rear of the chassis typically fixes this.

Dust and Debris: As with any vintage gear, dust accumulation inside the chassis can affect performance. A gentle cleaning with compressed air is recommended before powering up a long-stored unit.

Because the AA-141 has no power supply or active electronics, it’s remarkably reliable. Most functional units today still perform as intended when properly maintained.

Current Market Value and Collectibility

The Heathkit AA-141 is not a common sight on the vintage audio market, but it has a quiet following among DIY enthusiasts and purist audiophiles. Complete, assembled units in good condition typically sell for $150–$250, depending on cosmetics and functionality. Original kits in unopened condition can fetch higher prices—up to $300–$400—from collectors of vintage electronics.

Its value lies not in flashy features, but in its historical significance and engineering integrity. It represents a moment when high-fidelity audio was still within reach of the skilled hobbyist, and when transparency in design was as important as transparency in sound.

Units that have been carefully restored or upgraded—such as those with modern shielding or upgraded jacks—can command premiums, especially if documented with build logs or original manuals.

Conclusion and Legacy

The Heathkit AA-141 may not have the wattage ratings or flashy meters of a classic receiver, but it holds a special place in the hearts of those who appreciate simplicity, craftsmanship, and sonic purity. As a passive preamplifier, it serves a specific but important role: getting out of the way of the music.

More than just an audio component, the AA-141 is a symbol of an era when building your own hi-fi system was not only possible but encouraged. It empowered users to understand their gear down to the resistor level, fostering a deeper connection between listener and machine.

Today, the AA-141 stands as a quiet achiever—a no-frills, high-performance tool for those who value signal integrity and the satisfaction of building something that lasts. For the vintage audio enthusiast, the Heathkit AA-141 isn’t just a preamp. It’s a piece of audio history you can assemble with your own hands.
