Fisher TX-300 Preamplifier (1976)

The Fisher TX-300 is a solid-state stereo preamplifier introduced in 1976 as part of Fisher’s transition from tube-based to solid-state audio equipment. Known for its clean, warm sound and robust build quality, the TX-300 was designed to deliver high-fidelity audio performance during a pivotal era in home audio evolution. With its dual power meters, comprehensive filtering options, and elegant wood cabinet finish options, the TX-300 remains a respected piece among vintage audio enthusiasts.

Specifications

Feature	Specification
Model	TX-300
Brand	Fisher
Category	Preamplifier
Year of Release	1976
Production Period	1976–1978
Design Type	Solid-state
Power Output	60 watts per channel into 8 ohms (when paired with compatible power amp)
Impedance	8 ohms
Frequency Response	Not specified by manufacturer
Sensitivity	Unknown
Inputs	Phono (MM), Tape, Auxiliary
Outputs	Preamp outputs, Tape monitor
Filters	High and low pass filters
Tone Controls	Bass, Treble, Loudness contour
Display	Dual power meters (left/right channel)
Cabinet Options	Black finish with optional wood veneer
Dimensions	17" W × 5.5" H × 14" D
Weight	22 lbs (10 kg)

Key Features

Solid-State Design: A hallmark of Fisher’s 1970s engineering, offering improved reliability and reduced maintenance over earlier tube models.
Dual Power Meters: Visual feedback for left and right channel output levels, enhancing user experience and system monitoring.
Tone and Filter Options: Includes high and low pass filters, loudness contour, and standard bass/treble controls for tailored sound shaping.
Tape Monitor Function: Allows switching between tape input and direct source for recording and playback flexibility.
Preamp Outputs: Enables connection to external power amplifiers, making it ideal for modular audio systems.
Wood Cabinet Option: Available with a wood veneer finish, adding aesthetic appeal to home entertainment centers.

Historical Context

The Fisher TX-300 emerged during a transformative period for audio technology. As consumer demand shifted toward higher power, greater reliability, and sleeker designs, Fisher phased out vacuum tube amplification in favor of solid-state circuitry. The TX-300 exemplifies this transition, combining the brand’s legacy of high fidelity with modern (for the time) semiconductor technology.

Fisher, once renowned for its high-end tube receivers like the legendary 500 series, adapted to the 1970s market by emphasizing clean performance, durability, and user-friendly features. The TX-300 was part of a broader lineup that helped maintain Fisher’s reputation among audiophiles and casual listeners alike, even as competition from Japanese manufacturers intensified.

Sound Signature

The TX-300 delivers a warm, smooth, and detailed sound profile typical of well-engineered solid-state preamplifiers from the mid-1970s. Its bass response is firm and well-controlled, while the midrange remains clear and natural. High frequencies are extended without harshness, contributing to a balanced and engaging listening experience. When paired with matching power amplification, the TX-300 reveals its strength in musicality and dynamic range.

Maintenance and Restoration Tips

Like all vintage electronics, the Fisher TX-300 benefits from regular maintenance to ensure optimal performance:

Capacitor Replacement: Electrolytic capacitors degrade over time. Replacing them (especially in the power supply) prevents hum, distortion, and potential damage.
Potentiometer and Switch Cleaning: Use contact cleaner on volume, tone, and selector knobs to eliminate crackling and channel imbalance.
Transistor Inspection: Check output and power supply transistors for signs of failure. While generally reliable, aging components may need replacement.
Bias Adjustment: If used with compatible power amps, verify proper bias settings after servicing.
Ventilation: Ensure adequate airflow around the unit to prevent overheating, especially during extended use.

Restoration tip: Retain original components when possible for collectibility, but prioritize safety and functionality with updated capacitors and wiring if needed.

Market Value and Collectibility

The Fisher TX-300 holds moderate collectible value, rated 6/10 among vintage audio enthusiasts. Its appeal lies in its solid performance, iconic design, and place in Fisher’s engineering timeline.

Market Value: $150–$300, depending on condition, cosmetics, and functionality.
Higher Value Units: Those in working condition with wood cabinets, clean meters, and original finish command premium prices.

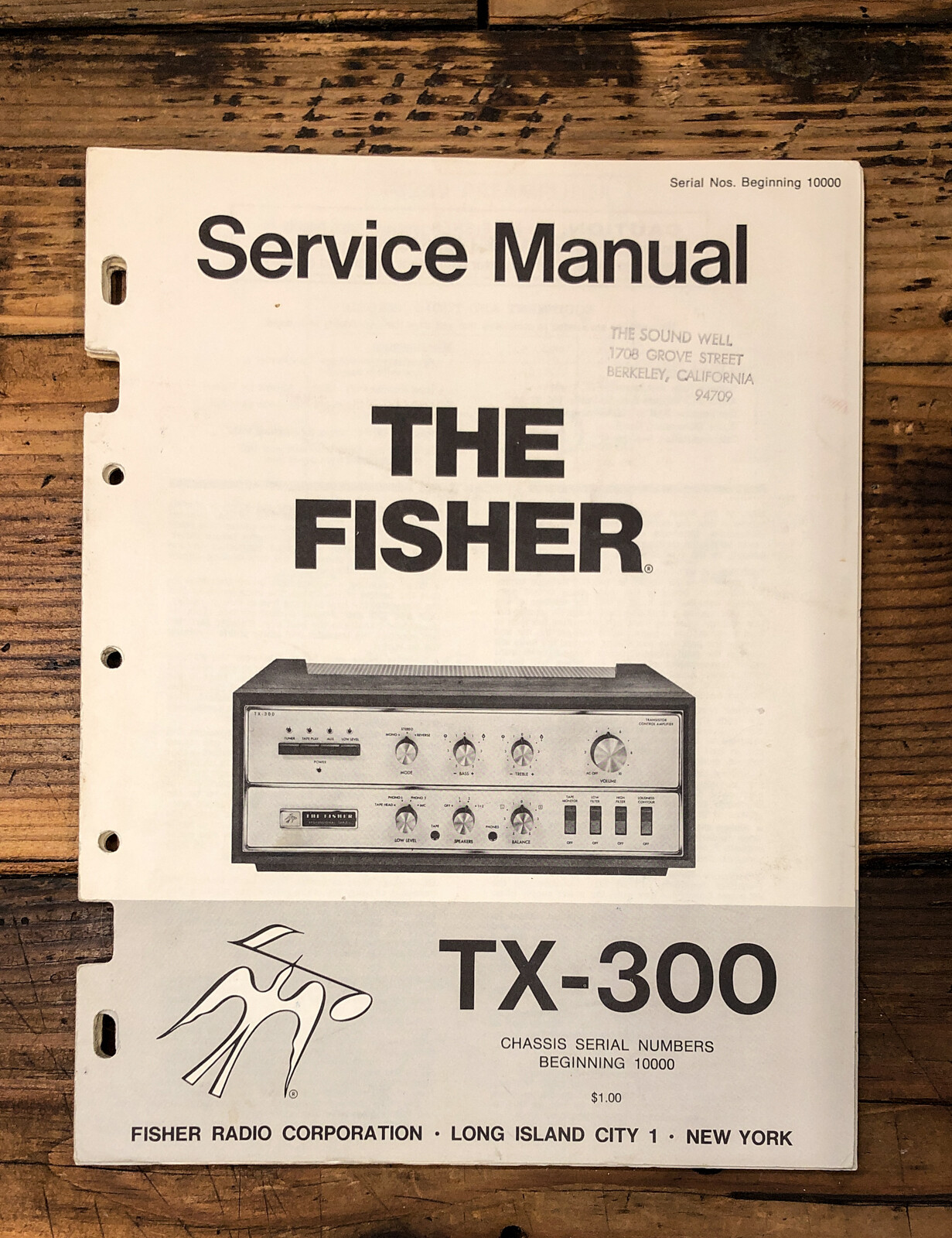

Restoration Potential: Units needing service can be excellent project pieces due to the availability of service manuals and community support.

Conclusion

The Fisher TX-300 stands as a reliable and sonically pleasing example of 1970s American audio engineering. While not as legendary as Fisher’s tube-era classics, it represents a successful adaptation to changing technology and listener expectations. For vintage audio collectors and DIY restorers, the TX-300 offers a rewarding blend of performance, aesthetics, and historical significance.
