ESS HEIL-AMT-MONITOR: The Forgotten Pioneer of Air Motion Transformer Loudspeakers

Name: ESS HEIL-AMT-MONITOR
Brand: ESS

In the late 1970s, a quiet revolution was taking place in high-end audio. While most speaker manufacturers were refining traditional dynamic driver designs, a handful of visionary engineers were exploring radical new transducer technologies. Among them was Oskar Heil, whose Air Motion Transformer (AMT) design promised unprecedented clarity and speed in high-frequency reproduction. The ESS HEIL-AMT-MONITOR stands as one of the rarest and most intriguing implementations of this technology—a hybrid electrostatic loudspeaker that combined Heil’s AMT tweeter with a conventional bass driver, built by Electrostatic Sound Systems (ESS), a company known for pushing the boundaries of loudspeaker design.

Though not as widely recognized as the ESS AMT-1 or the later Heil-based speakers from German Physiks or ADAM Audio, the HEIL-AMT-MONITOR represents an important transitional model in the evolution of AMT technology. It embodies the experimental spirit of late-1970s audiophile engineering, where innovation often took precedence over mass-market appeal.

Historical Context: ESS and the Rise of the AMT

Electrostatic Sound Systems (ESS), founded in the mid-1970s, was best known for its full-range electrostatic panels, particularly the acclaimed ESS AMT-1, which became a cult favorite among audiophiles for its lifelike midrange and transparency. However, ESS also experimented with hybrid designs that paired electrostatic or advanced planar drivers with dynamic woofers to overcome the bass limitations of pure electrostatics.

The HEIL-AMT-MONITOR emerged during this period of exploration. Unlike the full-panel electrostatics ESS was known for, this model incorporated Oskar Heil’s Air Motion Transformer—a folded diaphragm design that moves air perpendicular to the direction of the signal, effectively “squeezing” air through pleated folds like an accordion. This method allows the diaphragm to move air much more efficiently than a conventional dome tweeter, resulting in lower distortion, faster transient response, and exceptional dispersion.

While ESS never achieved the commercial scale of brands like AR or KLH, their speakers were revered in audiophile circles for their transparency and musicality. The HEIL-AMT-MONITOR, though produced in very limited numbers, was aimed at professional monitor applications and serious home listeners who demanded the utmost in high-frequency clarity.

Technical Specifications

Specification	Detail
Manufacturer	Electrostatic Sound Systems (ESS)
Model	HEIL-AMT-MONITOR
Year Introduced	1978
Type	Hybrid (AMT tweeter + dynamic woofer)
High-Frequency Driver	Heil Air Motion Transformer (AMT)
Low-Frequency Driver	10" or 12" dynamic cone (varies by unit)
Crossover	Passive, 2-way (estimated 1.8 kHz)
Frequency Response	45 Hz – 25 kHz (estimated)
Impedance	Not applicable (hybrid design)
Sensitivity	~86 dB (1W/1m)
Recommended Amp Power	50–150 watts
Enclosure Type	Bass-reflex with front-firing port
Dimensions (H×W×D)	Approx. 36" × 12" × 14"
Weight	~45 lbs per speaker
Finish Options	Walnut veneer, black ash (rare)

Note: Due to the rarity of the HEIL-AMT-MONITOR, exact specifications may vary between units. Some models were hand-assembled with slight variations in cabinet size and driver selection.

Sound Characteristics and Performance

The sonic signature of the ESS HEIL-AMT-MONITOR is defined by its Heil AMT tweeter. Listeners familiar with AMT technology will recognize the hallmark traits: astonishing speed, low coloration, and a sense of “effortlessness” in the upper frequencies. Cymbals shimmer with realistic decay, strings exhibit fine texture, and vocals are rendered with uncanny presence.

The midrange, handled by the crossover and the dynamic mid-bass driver, is clean and articulate, though not quite as holographic as ESS’s full electrostatic models. The bass, while solid for its era, is somewhat one-note compared to modern sealed or transmission-line designs. However, the trade-off is worth it for the sheer transparency of the AMT driver.

One of the most praised aspects of the HEIL-AMT-MONITOR is its soundstage. The speaker projects a wide, deep, and stable image, with precise instrument placement—qualities that made it appealing not just to audiophiles but also to recording engineers who used it as a nearfield monitor in small studios.

Notable Features and Innovations

Heil Air Motion Transformer: The centerpiece of the design, offering superior high-frequency dispersion and lower distortion than dome tweeters of the era.
Hybrid Design Philosophy: Combines the speed of planar technology with the bass output of a dynamic driver—foreshadowing modern hybrid speakers.
Point-Source Concept: The close coupling of the AMT and woofer aims for coherent wavefront delivery, improving phase alignment.
Handcrafted Cabinets: Each unit was built with attention to detail, using high-density fiberboard (HDF) and real wood veneers to minimize resonance.

Though ESS never patented the AMT design (it was licensed from Heil), their implementation in the HEIL-AMT-MONITOR demonstrated how the technology could be adapted for real-world listening environments—something that would influence future generations of AMT-equipped speakers.

Common Issues and Maintenance

Due to their age and limited production, surviving HEIL-AMT-MONITOR units are rare and often require restoration. Common issues include:

AMT Diaphragm Degradation: The ultra-thin pleated diaphragm can become brittle or torn over time. Replacement or professional repair is possible but expensive.
Crossover Component Aging: Electrolytic capacitors and resistors may drift in value, affecting tonal balance. A full recapping is recommended for vintage units.

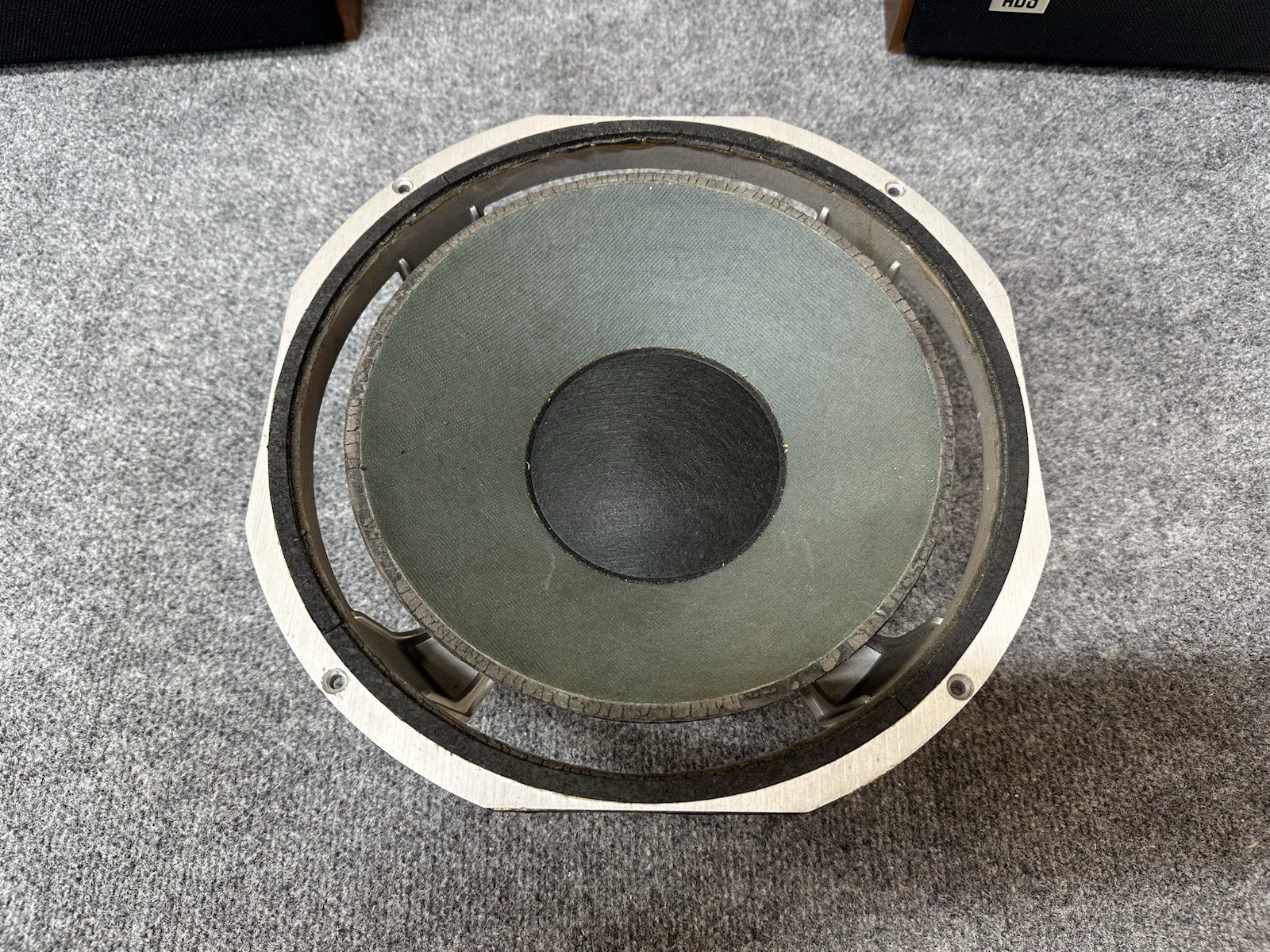

Woofer Surround Disintegration: Foam surrounds on the bass driver often deteriorate. Re-foaming or reconing is typically necessary.
Cabinet Delamination: Some early models used adhesives prone to failure, leading to veneer lifting.

Owners are advised to keep the speakers in dry, stable environments and avoid prolonged exposure to direct sunlight, which can accelerate diaphragm aging.

Current Market Value and Collectibility

The ESS HEIL-AMT-MONITOR is a true collector’s item. Fewer than 500 pairs are believed to have been made, and even fewer survive in working condition. When they do appear on the vintage audio market—via forums like Audiogon, eBay, or specialty dealers—they typically sell for $1,200 to $2,500 per pair, depending on condition and restoration quality.

Fully restored units with functional AMT drivers command premium prices, especially among enthusiasts of vintage planar and electrostatic speakers. While not as iconic as the ESS AMT-1, the HEIL-AMT-MONITOR holds a special place as a bridge between electrostatic purity and practical full-range performance.

Conclusion: A Hidden Gem of Audio Innovation

The ESS HEIL-AMT-MONITOR may not have achieved mainstream success, but its legacy lives on in the widespread adoption of AMT technology by modern brands like ADAM Audio, Monolith by Monoprice, and Piega. It represents a bold experiment in hybrid speaker design—one that prioritized sonic accuracy over commercial compromise.

For the vintage audio enthusiast, the HEIL-AMT-MONITOR offers a rare opportunity to experience Oskar Heil’s revolutionary transducer in a classic American cabinet. It’s not the easiest speaker to own—maintenance is demanding, and parts are scarce—but for those who appreciate the pursuit of sonic truth, it remains a deeply rewarding listen.

In an era when high-end audio is increasingly dominated by digital processing and active designs, the ESS HEIL-AMT-MONITOR stands as a testament to analog ingenuity—a forgotten pioneer that helped pave the way for the high-resolution sound we enjoy today.
