EICO HF-81 (1959)

Name: Eico HF-81
Brand: Eico

It doesn’t look like much, but this humble kit-built amp delivers a sound that’ll stop you in your tracks—warm, alive, and shockingly detailed.

Overview

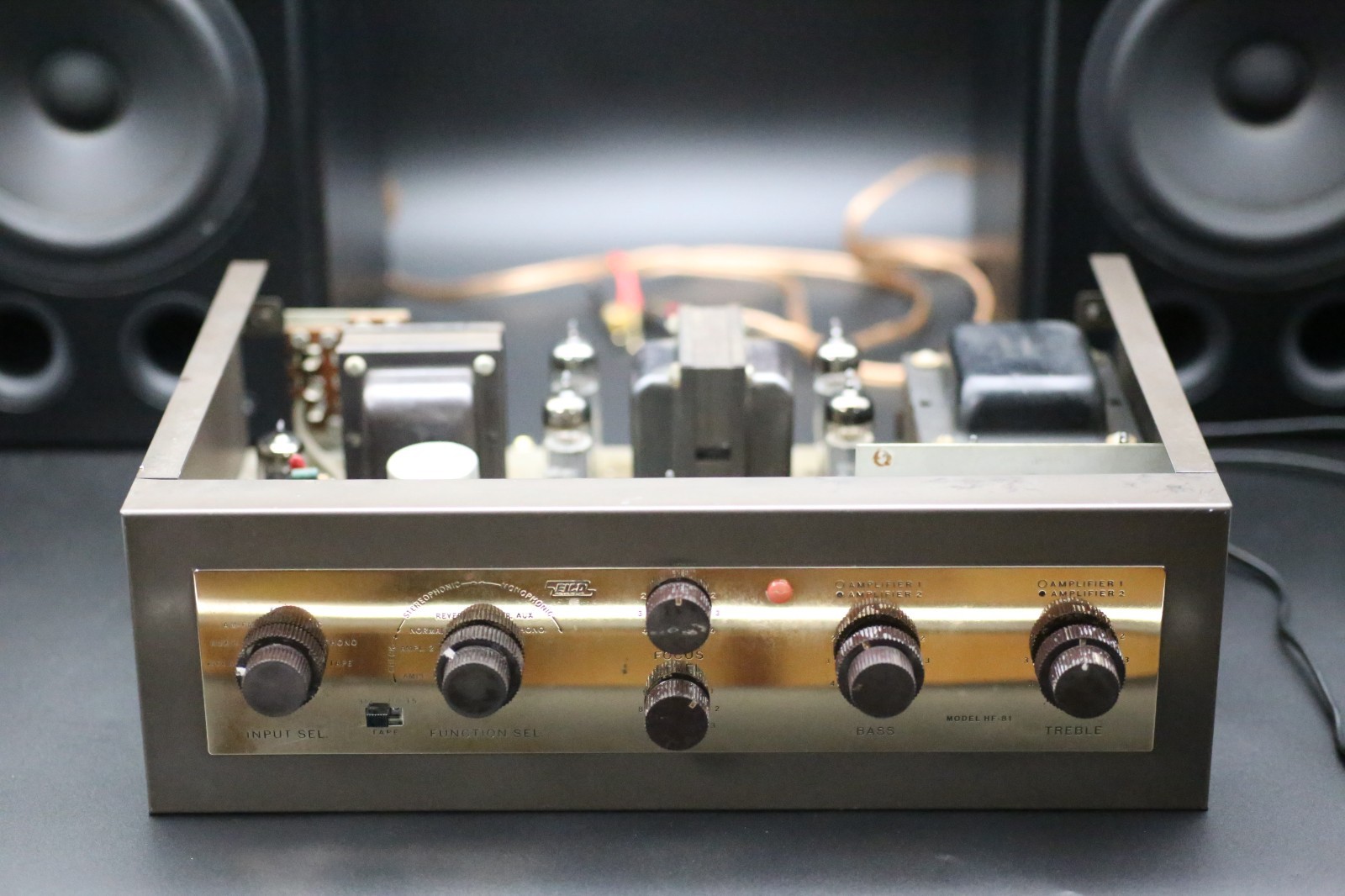

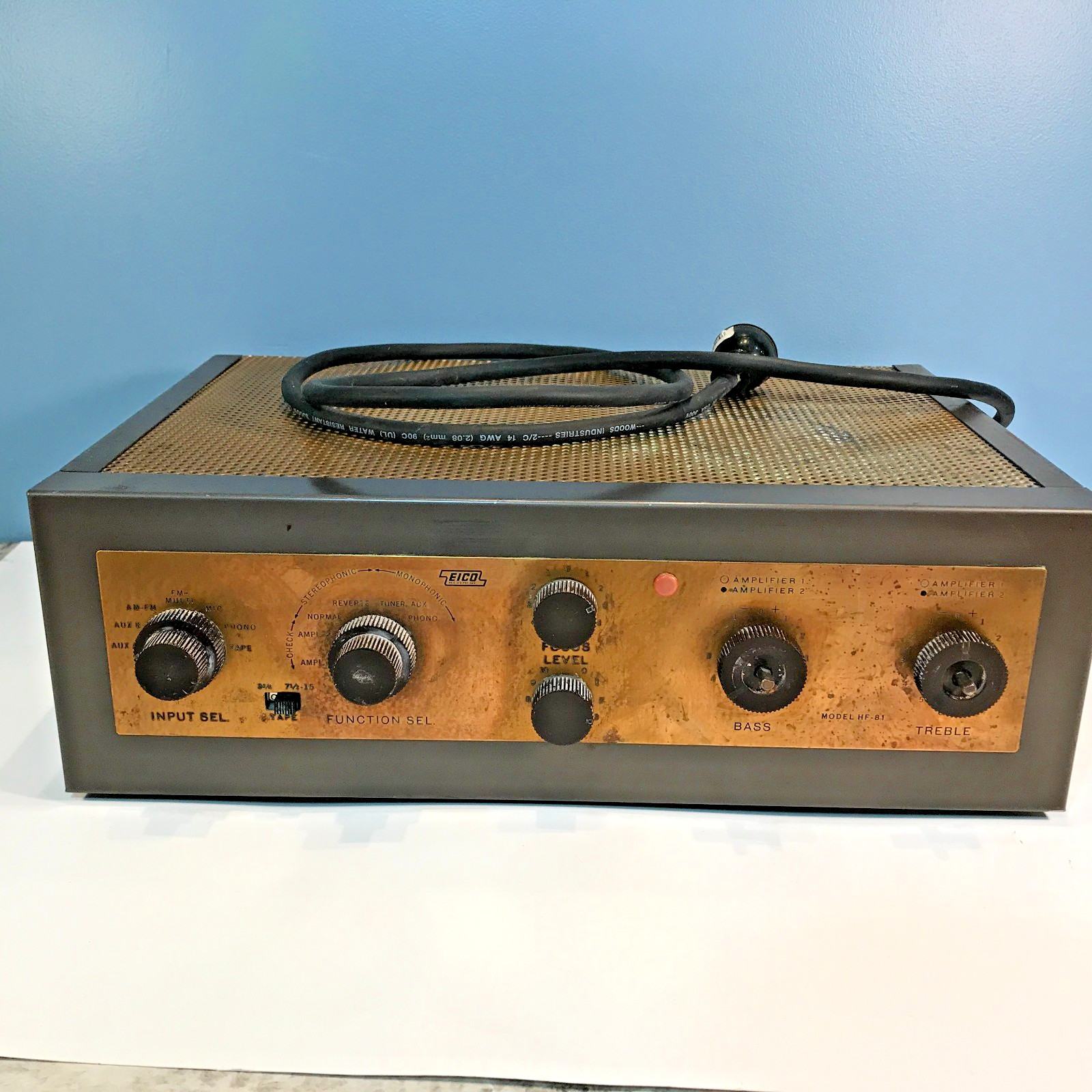

You pull the EICO HF-81 out of its box—well, if you're lucky enough to find one still boxed—and the first thing you notice isn't the sound. It's the chassis. Exposed, industrial, with point-to-point wiring that looks like it was laid out by someone who cared more about function than form. And that’s exactly the point. The HF-81 wasn’t designed to sit on a shelf and look pretty; it was built to be built. Introduced in 1959 by EICO of Long Island City, NY, this stereo integrated amplifier kit became the company’s most famous product, a symbol of an era when high-fidelity audio wasn’t just for the wealthy—it was something you could assemble yourself, learn from, and live with.

For under $70 as a kit (or $110 assembled), hobbyists in the late 1950s and early 1960s could bring home a complete tube-powered stereo system with a built-in phono preamp, RIAA equalization, and 14 watts per channel. That was serious value at a time when hi-fi was becoming a national obsession. Companies like Dynaco, Heathkit, Fisher, Scott, and LEAK were all vying for the DIY and entry-level markets, but the HF-81 stood out not just for its price, but for its performance. Owners report a sound that belies its modest specs: smooth, uncolored, natural, with a bloom and soundstage that some say could embarrass solid-state amps costing far more. One reviewer put it bluntly: “I literally could not BELIEVE the sound!” Another called it “too good” for its price—praise that still echoes in forums and restoration threads today.

It’s not perfect. The build quality, while functional, has been described as “the most homely chassis you have ever seen,” like “an elementary school electronics project gone awry.” But that rawness is part of its charm. This was electronics before the gloss, before the boutique finishes—just tubes, transformers, and wire, laid bare for anyone willing to learn. And learn they did. EICO had been a leader in kit-based electronics since 1945, starting with test equipment, and the HF-81 carried that educational mission into the hi-fi world. It wasn’t just an amplifier; it was a lesson in vacuum tube circuitry, grounding, and signal flow.

Specifications

Manufacturer	EICO, Electronic Instrument Company, Long Island City, NY
Product type	stereo integrated amplifier kit
Production/Introduction year	1959
Maximum output power	14Wpc (11.5dBW) continuous into rated load
Power output	14 watts RMS
Tube complement	Four x ECC83/12AX7, Four x EL84/6BQ5, Two x EZ81
Frequency response (at 1W into 8 ohms)	10Hz–100kHz, ±0.5dB
Tone control range	±15dB at 50Hz and 10kHz
Harmonic distortion	<1% at 8W, 30Hz–10kHz, at 10W, 50Hz–5kHz
IM distortion (60Hz and 6kHz at 4:1)	2% at 14W, 0.05% at 5W
Sensitivity (input for 14W)	Mag phono 4mV, Tape head 2mV, Mic 5mV, Aux and tuners 500mV
Speaker connections	4, 8, 16, and 32 ohms
Dimensions	15" (385mm) W 4-3/4" (120mm) H 10-1/2" (270mm) D
Weight	24 lbs (10.9kg)
Features	built-in phono pre-amp and RIAA equalization
Original price (ca 1960)	$109.95 assembled, $69.95 kit

Key Features

Williamson-Inspired Circuitry

The HF-81’s design leans on the Williamson circuit, a legendary topology from the late 1940s known for its high fidelity and low distortion. While not a pure Williamson, the HF-81 borrows its philosophy: a push-pull output stage with careful attention to feedback and stability. Each channel uses a pair of EL84/6BQ5 tubes in push-pull configuration, triode-wired for a sweeter, more natural midrange. Four ECC83/12AX7 tubes handle the preamp duties, including the phono stage with full RIAA equalization—essential for vinyl playback. The result is a full tube preamp and power amp on a single chassis, a rare integration for a kit at this price.

Tube Rectification and Clean Layout

Power comes from twin EZ81 rectifier tubes, a design choice that contributes to the amp’s soft startup and characteristic “sag” under load—something many tube lovers chase. The chassis, while visually chaotic, is actually well laid out with plenty of room between components, making servicing and restoration more approachable than you might expect. EICO’s manuals were famously detailed, guiding builders through every step, and that clarity extends to the physical design. You can trace signals, replace parts, and understand the flow without getting lost in a rat’s nest.

Component-Level Design

Inside, you’ll find coupling capacitors, a 50 µF capacitor, a 100 µF cap, and CRL couplets in the tone network—components that were common in the era but now represent key failure points. The CRL couplets, in particular, were prone to failure and have been replaced in many restorations with modern PCBs. But that’s part of the HF-81’s appeal: it’s not sealed away. It invites you in. You can see the parts, touch them, replace them. It’s electronics as a hands-on craft, not a black box.

Historical Context

EICO didn’t start in hi-fi. They began in 1945 building test equipment kits for hobbyists and technicians, earning a reputation for quality and clarity. By the late 1950s, as hi-fi listening exploded in popularity, EICO saw an opportunity. Companies with electronics know-how—like Dynaco and Heathkit—were jumping into the market, and EICO followed with the HF-81. Their mission was simple: sell high-quality kits that customers could assemble themselves, saving money while learning about electronics. The HF-81 wasn’t just a product; it was an extension of that philosophy. It made high-fidelity audio accessible to a generation of tinkerers, students, and music lovers who wanted performance without the premium price tag.

Collectibility & Value

Today, the EICO HF-81 is one of the most collectible of all vintage tube-era kits. A fully restored unit can command prices ranging from $800 to $2,990, with SkyFi Audio listing one at the top end as of mid-2025. Sold examples show a spread: $650, $950, $1,050, and $1,600 (reduced from $1,750). The wide range reflects condition, restoration quality, and whether tubes are included. As one owner warned: “avoid those sky-high priced, unrefurbed beater HF-81's with no tube set.”

Restoration is almost a given. These units are over 60 years old, and the original capacitors—especially the multi-section can and coupling caps—degrade over time. Common maintenance includes full capacitor replacement, tube socket replacement, select resistor changes, and adding a modern 3-prong power cord for safety. The “SEP, COM Switch” circuit is often modified or removed, and a phono grounding lug is typically added. Chassis and transformer covers are often repainted due to rust, discoloration, and pitting—common issues noted by collectors. The balance control may drift, requiring slight adjustment off-center for optimal performance, and channel imbalances in the volume control have been reported.

Despite these quirks, many HF-81s are still in service today. If carefully restored, owners say they sound superb—detailed, musical, with that classic “tubey” character, capable of driving large floorstanding speakers. The internet is full of helpful posts on how to bring one back to life, from basic recapping to full chassis refinishing. It’s not just a collector’s item; it’s a working amplifier with a cult following.
