Dynaco PAT-5 Preamp (1976)

The Dynaco PAT-5 is a solid-state preamplifier introduced in 1976. Dynaco was modernizing its line and moving away from the tube designs that had made the company famous. The PAT-5 has a clean signal path, modular construction and low distortion. It was built to pair with Dynaco's power amplifiers and to compete with the rising wave of high-performance Japanese audio equipment.

The PAT-5 never got the reverence of Dynaco's tube gear like the PAT-4 or ST-70. It was one of Dynaco's first solid-state preamps. It gave audiophiles a more neutral, accurate sound than the warm, rich tonality of tube preamps.

Specifications

Feature	Specification
Model	PAT-5
Brand	Dynaco
Year Introduced	1976
Production Years	1976–1980
Category	Preamplifier
Design Type	Solid-state
Construction	Modular PCB design
Inputs	Phono (MM), Line (x3), Tape In/Out
Outputs	Main Out, Tape Out, Headphones
Phono Stage	Yes (Moving Magnet)
Tone Controls	Bass, Treble, Loudness
Impedance (Input)	47kΩ (Line), 47kΩ + 100pF (Phono)
Output Impedance	<1kΩ
Frequency Response	20Hz–20kHz ±0.5dB (Line); 20Hz–20kHz ±2dB (Phono)
THD (Total Harmonic Distortion)	<0.02% (Line), <0.05% (Phono)
Slew Rate	High (exact value not published)
TIM Distortion	Low (designed for minimal transient intermodulation)
Power Supply	Internal linear power supply
Dimensions	17" W × 5" H × 13" D
Weight	14 lbs

Historical Context

The PAT-5 came at a turning point for Dynaco. By the mid-1970s the audio market was shifting fast from vacuum tubes to solid-state, pushed along by Japanese manufacturers like Sony, Pioneer, and Kenwood. Dynaco was known for affordable, high-quality tube amplifiers, and it needed to change.

The PAT-5 was developed as a companion to the Dynaquad 5 power amplifier. Its modular design made servicing and upgrades easier. The preamp used a discrete solid-state circuit with a high slew rate and low TIM distortion. Those were buzzwords in the late 1970s audiophile community, and the aim was to preserve signal integrity during dynamic transients.

The PAT-5 never reached the cult status of Dynaco's tube gear, but it was well-received for its clarity, precision, and build quality. It was the company's attempt to stay relevant in a changing market. Financial difficulties eventually led to Dynaco's decline by the early 1980s.

Sound Signature

The PAT-5 has a clean, neutral, and detailed sound. Next to the lush, harmonically rich character of Dynaco's tube preamps, it is more transparent and accurate. It does well in soundstage clarity, instrument separation, and dynamic expression.

Bass: Tight and well-controlled
Mids: Clear and uncolored
Treble: Smooth with good extension
Overall: Less romantic than tube designs, but praised for fidelity and low coloration

It pairs well with warmer-sounding power amps or speakers, which balance its clinical precision.

Maintenance and Common Issues

Like all vintage electronics from the 1970s, the PAT-5 benefits from regular maintenance, especially if still in active use.

Common Issues:

Aging electrolytic capacitors: Can cause hum, channel imbalance, or power supply issues. Recapping is highly recommended.
Noisy potentiometers and switches: Due to oxidation or dirt. Cleaning with contact cleaner (e.g., DeoxIT) often resolves scratchiness.

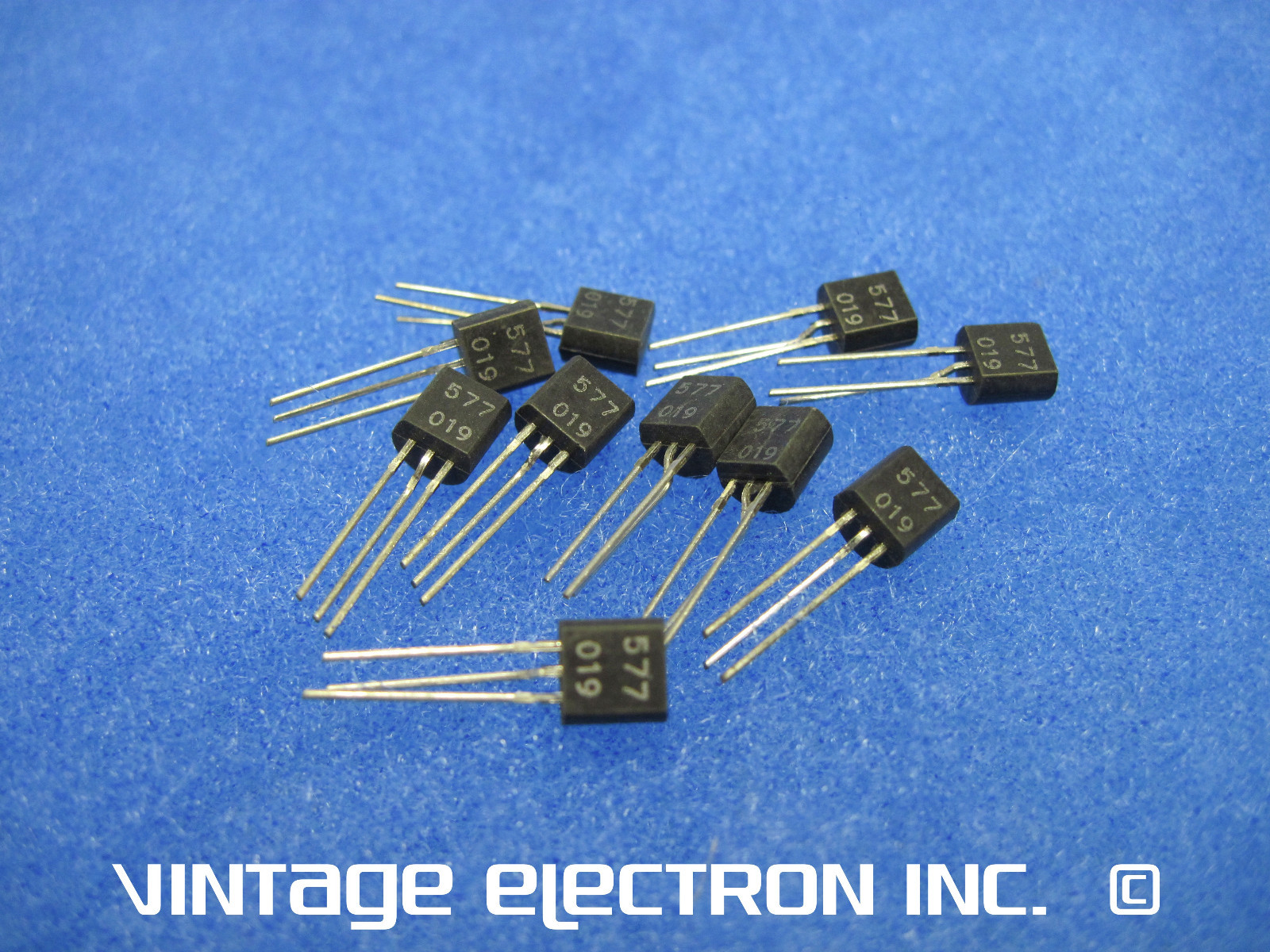

Transistor failures: Rare but possible. The solid-state design uses early-generation transistors that may degrade over time.
Phono stage sensitivity: May require alignment or replacement of input capacitors for optimal RIAA equalization.

Tips for Owners:

1. Recap the unit if the original capacitors are still installed - this is the single most impactful upgrade.

2. Clean all controls regularly to prevent noise.

3. Check grounding and shielding to minimize hum or interference.

4. Use a surge protector - the internal power supply is not protected against voltage spikes.

5. Store in a dry, cool place to prevent corrosion and component stress.

Market Value and Collectibility

Current Market Value: $150–$300, depending on condition and functionality
Collectibility Rating: 6/10

The PAT-5 is not a high-demand collector's item like the ST-70 amplifier, but it appeals to:

Dynaco enthusiasts completing a vintage system
Audiophiles seeking a neutral solid-state preamp
Restorers interested in modular vintage electronics

Its value goes up significantly if it is recapped, fully functional, and cosmetically clean.

Conclusion

The Dynaco PAT-5 sits between the end of the tube age and the start of solid-state fidelity. It is overshadowed by its predecessors, but it is a competent, well-engineered preamplifier with honest sound reproduction. It suits a classic setup, especially when properly maintained.
