Denon DP-23F: The Understated Precision of a Japanese Turntable Classic

In the late 1970s Denon was better known for professional recording equipment and studio mastering than for home turntables. It released the Denon DP-23F anyway, and it became a cult favorite among analog purists. It never got the fame of the Technics SL-1200 or the Linn LP12, but it built a loyal following on careful engineering, a minimalist design and exceptional tracking accuracy. It is a manual, belt-driven turntable from Denon's golden era of analog work.

Denon is now widely known for AV receivers and digital audio products, but its analog roots run deep. The DP-23F, introduced in 1979, came out while Denon was producing some of the most respected phono cartridges and turntables in the world. Unlike mass-market models, it was built for accuracy and musicality. It was aimed at serious listeners who valued transparency and low coloration over flashy features.

The DP-23F is not as widely documented as some of its peers. It shares DNA with Denon's higher-end models of the era, including the DP-47F and DP-62L. It was designed for users who wanted a no-nonsense, high-performance turntable that put rigidity, isolation and rotational stability first.

Technical Specifications

Feature	Specification
Model	Denon DP-23F
Year Introduced	1979
Type	Manual, belt-driven turntable
Platter	300 mm (12"), die-cast aluminum, felt mat
Motor	AC synchronous, low-vibration
Drive System	Belt drive
Speeds	33⅓, 45 RPM
Speed Accuracy	±0.3%
Wow and Flutter	< 0.03% (weighted)
Tonearm	Straight aluminum, 9-inch effective length
Overhang Adjustment	Yes, via adjustable headshell
Anti-Skating	Adjustable (manual)
Bearings	Precision sapphire thrust and hardened steel shaft
Dimensions	450 × 155 × 360 mm (W × H × D)
Weight	8.5 kg (approx.)
Cartridge Compatibility	High-compliance MM/MC (recommended)
Included Cartridge	Not typically included

Sound Characteristics and Performance

Audiophiles often describe the Denon DP-23F's sound as neutral, detailed, and dynamically expressive. The rigid die-cast plinth and heavy platter give it excellent speed stability and low resonance. The result is a black background that lets subtle musical details come through.

Tracking accuracy is a standout. The 9-inch straight aluminum tonearm is not as advanced as the later S-shaped or carbon fiber arms, but it has low mass and good rigidity, which keeps coloration down. Paired with a high-quality moving magnet (MM) or moving coil (MC) cartridge, the DP-23F gives excellent transient response and a well-balanced tonal presentation. Bass is tight and controlled, mids are clear and natural, and highs are smooth without being rolled off.

One of the DP-23F's strengths is its lack of sonic signature. It doesn't impose a particular character on the music. That makes it a good choice for critical listening, and for anyone who wants to hear the recording as intended rather than through the turntable's own coloration.

Notable Features and Innovations

The DP-23F looks simple at first glance, but it has several thoughtful design elements that reflect Denon's engineering rigor:

Precision Main Bearing: The hardened steel shaft and sapphire thrust bearing minimize friction and wear, ensuring long-term speed consistency and reducing noise transmission.
Isolated Motor Mounting: The AC motor is decoupled from the main chassis to prevent vibration from reaching the platter and tonearm, a critical factor in maintaining low wow and flutter.
Heavy Die-Cast Platter: The 300 mm aluminum platter provides excellent inertia, contributing to stable rotation and resistance to external disturbances.

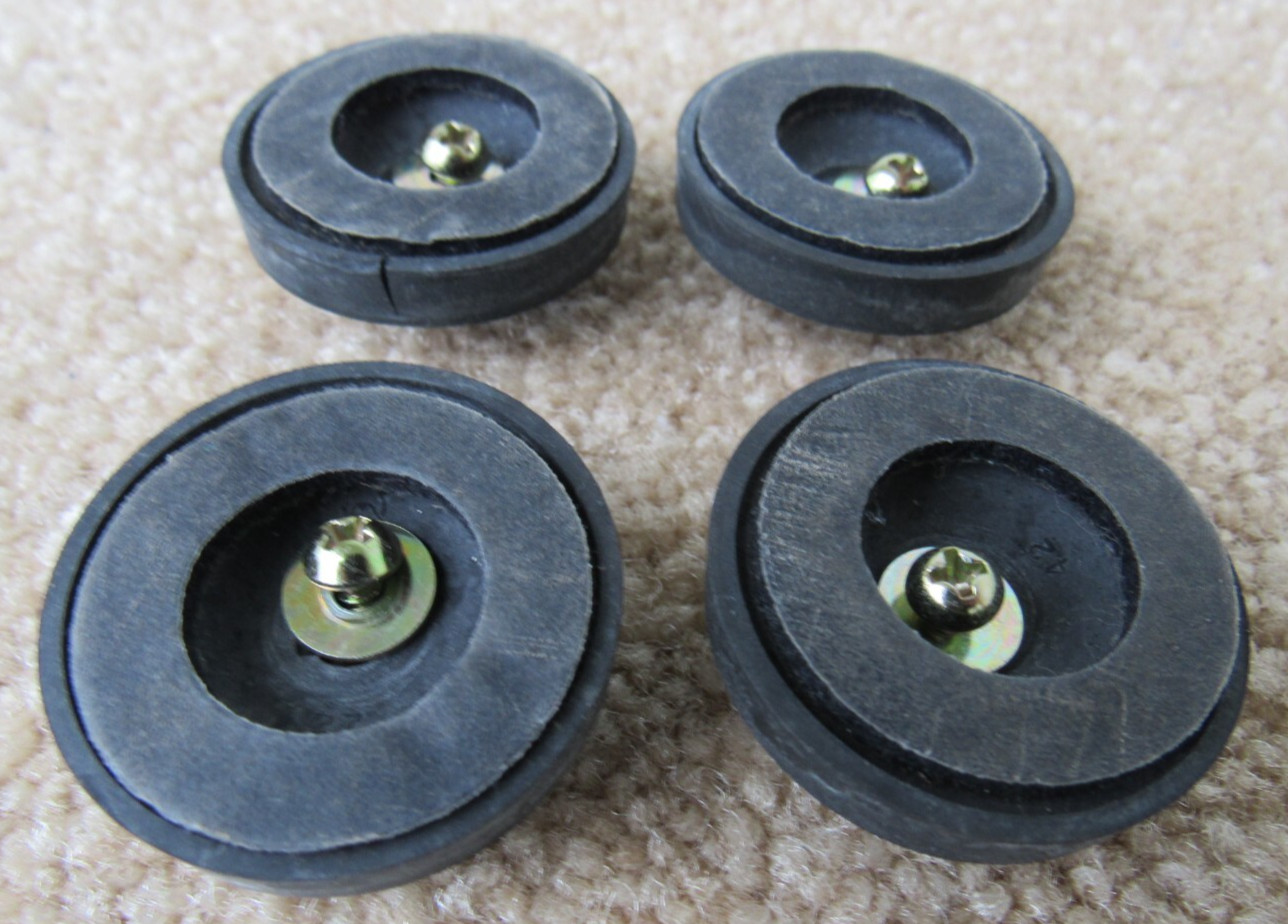

Adjustable Feet: The turntable features three adjustable rubber-damped feet, allowing for precise leveling—a must for optimal tracking and cartridge performance.
Manual Operation: The DP-23F requires the user to place and remove the tonearm by hand and manually switch between 33⅓ and 45 RPM using a pulley system. While less convenient than auto-start models, this approach reduces mechanical complexity and potential failure points.

There is no electronic speed control and no automatic functions. Denon was focused on mechanical purity, and every component serves a sonic purpose, with nothing superfluous added.

Common Issues and Maintenance

Like all vintage turntables, the Denon DP-23F benefits from careful maintenance, especially after decades of use. The most common issues include:

Worn Belt: The rubber belt driving the platter can dry out and crack over time. Replacement with a high-quality silicone belt is recommended for optimal performance.
Dried Lubrication: The main bearing and motor may require re-lubrication if the turntable has been idle for years. Use only lightweight, non-gumming oils suitable for precision audio equipment.
Tonearm Stiction: The tonearm pivot can become sticky due to old lubricant. Cleaning and re-lubrication with a minute amount of specialized grease can restore smooth movement.
Dust and Dirt: The platter, mat, and record surface should be kept clean. A carbon fiber brush and record cleaning fluid are essential tools.

Spare parts are not widely available, so owners should source replacements carefully. Third-party belts and lubricants are often the best option. The DP-23F is mechanically simple, so it is relatively easy to service for anyone with basic technical skills.

Current Market Value and Collectibility

The Denon DP-23F is not a mainstream collectible, but it has a quiet following among analog enthusiasts. In recent years, well-maintained units have begun to attract attention on audiophile forums and vintage audio marketplaces.

As of 2024, a fully functional DP-23F in good cosmetic condition typically sells for $300 - $500, depending on completeness (e.g., original dust cover, headshell, or included cartridge). Units with documented service history or rare finishes may command higher prices.

Its collectibility comes from proven performance and build quality, not brand hype. For a no-frills, high-fidelity turntable from Denon's analog heyday, the DP-23F offers excellent value and a listening experience that rivals more famous models.

Conclusion and Legacy

The Denon DP-23F may not have the status of a Technics SL-1200 or the cult mystique of a Linn Sondek. In an era when many manufacturers chased automation and convenience, it stayed with the fundamentals: stable rotation, low resonance and accurate tracking.

Today it appeals to a smaller group of vinyl listeners who appreciate understated engineering, mechanical integrity and a transparent window into the music.

It suits a classic Japanese hi-fi system, or anyone searching for a reliable, high-performance deck that doesn't shout for attention.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ DENON DP-23F                                                    Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $269                                    Latest            $117 │
│ Median    $130                                    Trend                — │
│ Low       $51                                     Volume           ~3/mo │
├──────────────────────────────────────────────────────────────────────────┤
│   $300 ┤                                                                 │
│        │                                                   .             │
│        │                                                     .           │
│   $193 ┤.                                                                │
│        │                                                                 │
│        │                      .      .     .                   .    .    │
│        │                                               .         .      .│
│    $50 ┤                               .    .                        .   │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │▄                     ▄      ▄ ▄   ▄▄          █   ▄ ▄ ▄ ▄  ▄▄  ▄│
│        └─────────────────────────────────────────────────────────────────│
│         2026-01                      2026-04                      2026-06│
└──────────────────────────────────────────────────────────────────────────┘
