Celestion HF1300 (1970)

Name: Celestion HF1300
Brand: Celestion

The Celestion HF1300 is a vintage high-frequency driver (tweeter) produced by Celestion, a British company with a long-standing reputation in loudspeaker manufacturing. Introduced around 1970, the HF1300 was designed for use in high-fidelity home audio systems and represented Celestion’s early foray into dome tweeters during a period when the company was transitioning from primarily bass and midrange driver production to full-range speaker system components.

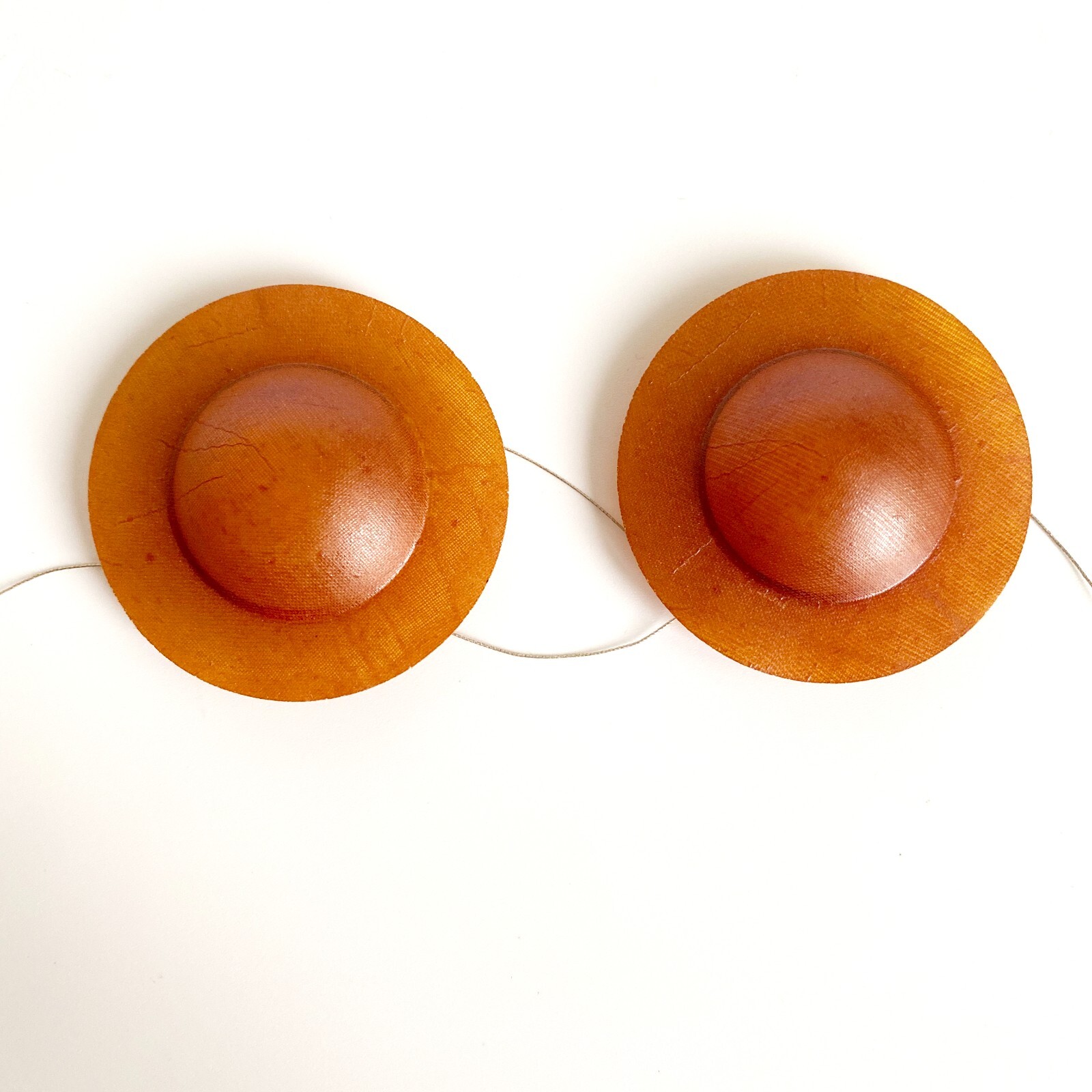

At a time when many manufacturers were still using horn-loaded or cone tweeters, the HF1300 stood out for its soft dome design, which contributed to a smoother and more natural high-frequency response. The dome material is typically a treated fabric, likely silk or a similar synthetic blend, which helped reduce harshness and resonance in the upper frequencies—a common issue with early metal dome tweeters.

Design and Construction

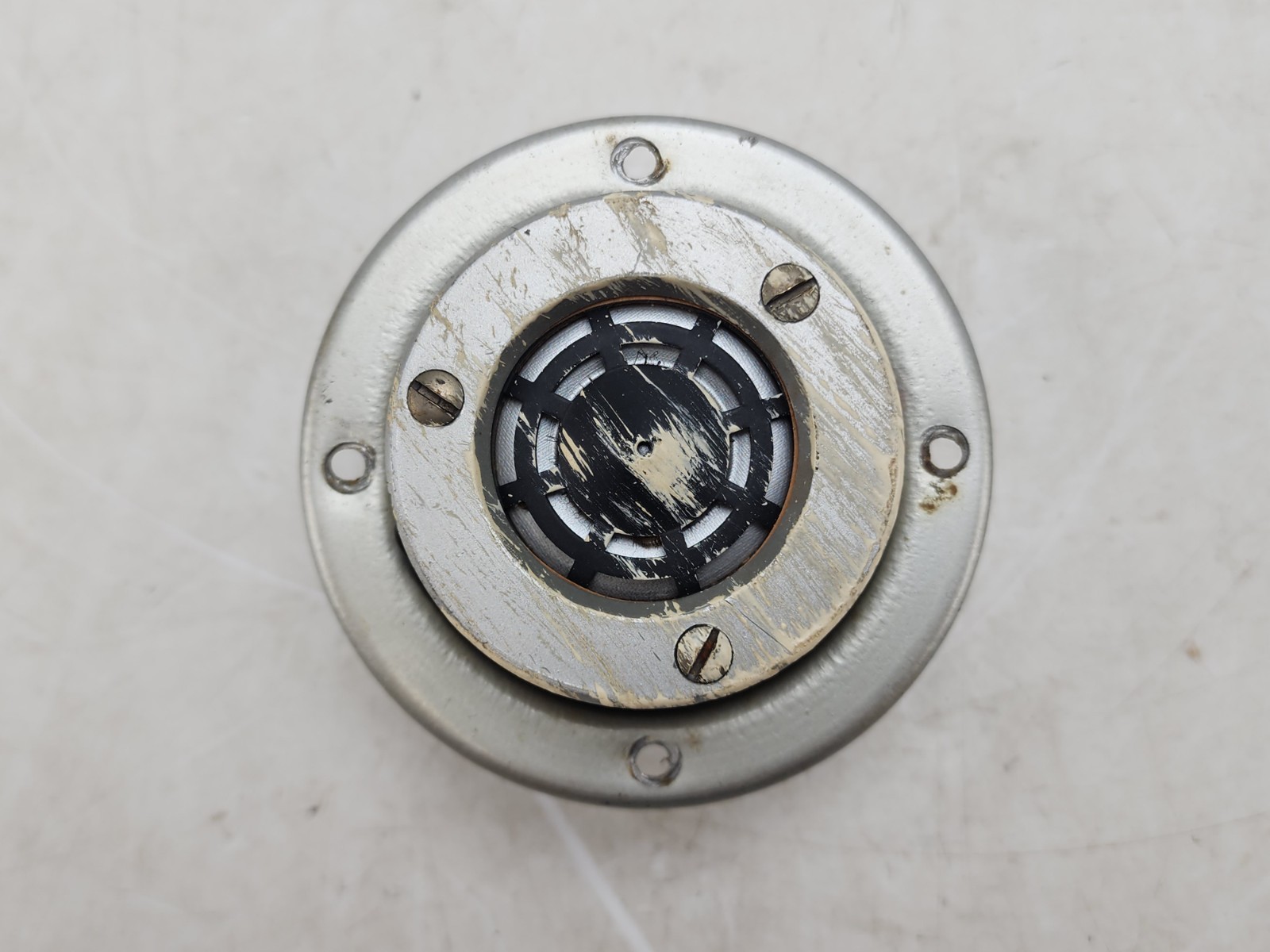

The HF1300 features a 1-inch (25mm) dome diaphragm mounted in a die-cast aluminum faceplate, giving it a robust and industrial appearance typical of the era. The faceplate includes mounting holes and a threaded rear terminal for secure installation in speaker cabinets. The magnet structure is relatively compact by modern standards but was considered efficient and well-engineered for its time. It uses a ferrite magnet, common in that era due to cost and availability, rather than the neodymium or rare-earth magnets seen in later designs.

The voice coil is wound on a Kapton or aluminum former and operates within a carefully aligned magnetic gap to ensure linearity and minimize distortion. The crossover frequency for the HF1300 is typically recommended between 3 kHz and 5 kHz, depending on the companion midrange or woofer and the overall system design. It is often paired with Celestion’s midrange drivers such as the HF1200 or LF series woofers in vintage speaker systems.

Electrical and Acoustical Specifications

Nominal Impedance: 8 ohms
Power Handling: 25 watts continuous
Sensitivity: Approximately 87 dB (1W/1m)
Frequency Response: 2,500 Hz to 20,000 Hz (±3 dB)
Resonance Frequency (Fs): ~1,800 Hz
Voice Coil Diameter: 1 inch (25mm)
Magnet Type: Ferrite
Dome Material: Fabric (soft dome)
Mounting Depth: ~2.1 inches (53mm)
Baffle Cutout Diameter: ~2.75 inches (70mm)

These specifications reflect a tweeter designed for integration into passive crossover networks without requiring excessive equalization or damping. Its moderate sensitivity means it pairs well with medium-to-high efficiency midrange and bass drivers, avoiding level mismatches in multi-way systems.

Historical Context and Use in Speaker Systems

Celestion, founded in 1924, initially gained fame for its guitar speaker drivers used in amplifiers by brands like Marshall and Vox. However, during the 1960s and 1970s, the company expanded into the hi-fi market, producing full-range speaker systems for home audio. The HF1300 was part of this initiative, often found in British-designed bookshelf and floor-standing speakers of the early 1970s.

It was commonly used in two-way and three-way speaker designs, particularly in systems aimed at audiophiles seeking accurate, non-fatiguing sound. Notable speaker models that may have incorporated the HF1300 include various iterations of the Celestion SL-6, SL-7, and other in-house designs, as well as third-party cabinets from smaller British manufacturers who sourced drivers from Celestion.

The HF1300’s tonal balance is often described as smooth, slightly warm, and non-aggressive—qualities that contrast with the brighter, more forward character of some contemporary tweeters from other brands. This made it a favorite among listeners who preferred a relaxed presentation, especially when paired with tube amplifiers that added further warmth to the overall sound signature.

Performance Characteristics

In practical listening, the HF1300 delivers clear and detailed highs without the sibilance or "etched" quality that can plague older metal dome tweeters. Its roll-off below 3 kHz is gradual, which allows for easier crossover integration and reduces phase issues when matched with appropriate midrange units. The soft dome design contributes to good off-axis dispersion, enhancing stereo imaging and soundstage width when properly positioned.

However, like many tweeters of its era, the HF1300 is not without limitations. Its power handling, while adequate for most tube and low-to-mid-powered solid-state amplifiers, can be exceeded with modern high-output amps or at high listening levels. Additionally, the ferrite magnet and older suspension materials may degrade over time, particularly in units that have been exposed to humidity or physical stress.

Some users have reported that the foam surround around the dome can deteriorate after several decades, leading to buzzing or reduced output. While reconing services are available for some vintage tweeters, parts and expertise for the HF1300 are relatively rare, making original working units desirable.

Legacy and Collectibility

Today, the Celestion HF1300 is considered a classic component among vintage audio enthusiasts. While not as widely recognized as some of Celestion’s guitar speakers, it holds a niche reputation in the hi-fi restoration community. Original pairs in good condition are occasionally found on auction sites and specialist forums, often sought after for restoring period-correct speaker systems.

Its sound signature—balanced, smooth, and musical—continues to appeal to listeners who value tonal coherence over clinical precision. Some DIY audio builders have also experimented with using the HF1300 in modern crossover designs, pairing it with contemporary woofers to blend vintage character with improved bass performance.

Conclusion

The Celestion HF1300 is a well-regarded vintage tweeter that exemplifies British loudspeaker engineering of the early 1970s. Designed for high-fidelity reproduction, it offers a warm, detailed high-frequency response that integrates smoothly into multi-driver systems. With an 8-ohm impedance, 25-watt power rating, and soft dome construction, it remains a reliable choice for restoring classic speakers or building retro-inspired audio systems.

Though long out of production, the HF1300 continues to be appreciated for its musicality and build quality. For collectors, restorers, and vintage audio aficionados, it represents a tangible piece of speaker design history from one of the UK’s most iconic audio brands.
