Celestion DITTON-25: The British Pioneer of Active Loudspeaker Innovation

Name: Celestion DITTON-25
Brand: Celestion

In the early 1980s, as high-fidelity audio entered a golden era of experimentation and refinement, Celestion—a company traditionally known for its robust guitar speaker drivers—surprised the audiophile world with a bold departure from convention: the DITTON-25. This wasn’t just another passive bookshelf speaker; it was a sophisticated, active, time-aligned loudspeaker system that pushed the boundaries of what home audio could achieve. Though not as widely recognized as some of its contemporaries from Linn or KEF, the DITTON-25 remains a cult classic among connoisseurs of British hi-fi engineering.

A Radical Departure for Celestion

Celestion had built its reputation on supplying rugged, reliable drivers for guitar amplifiers—think Marshall, Hiwatt, and Orange. But in the late 1970s and early 1980s, the company sought to expand into the high-end home audio market. The result was the DITTON series, a range of advanced loudspeakers developed under the guidance of engineer John Duncan. The DITTON-25, introduced in 1982, was the flagship of this line and represented a bold fusion of active electronics, time-domain accuracy, and minimalist acoustic design.

At a time when most audiophiles still favored passive two-way or three-way systems, the DITTON-25 stood out by integrating active crossovers and bi-amplification into a compact, sealed enclosure. This approach allowed for unprecedented control over driver behavior, reduced intermodulation distortion, and superior phase coherence—hallmarks of a truly transparent sound.

Technical Specifications

Specification	Detail
Model	DITTON-25
Manufacturer	Celestion Ltd., UK
Year Introduced	1982
Type	Active 2-way loudspeaker system
Enclosure	Sealed (acoustic suspension)
Drivers	1 x 25mm soft-dome tweeter, 1 x 165mm mid/bass unit
Crossover	Active 2nd-order electronic crossover at 2.8 kHz
Amplification	Internal bi-amp configuration (separate amps for high and low frequencies)
Power Output (Est.)	25W HF, 50W LF per speaker (total system)
Frequency Response	55 Hz – 20 kHz (±2 dB)
Sensitivity	87 dB (2.83V/1m)
Impedance	Not applicable (active system with line-level input)
Inputs	Balanced XLR and unbalanced RCA
Dimensions (H×W×D)	380 × 220 × 270 mm
Weight	12.5 kg per speaker
Finish Options	Black vinyl wrap, walnut veneer (limited runs)

Sound Characteristics and Performance

The DITTON-25 was engineered for sonic neutrality and time coherence, making it a favorite among critical listeners and recording engineers. Its active crossover ensured that each driver received only the frequencies it was designed to reproduce, with no passive components to degrade signal integrity. The result was a remarkably clean, detailed, and dynamic sound.

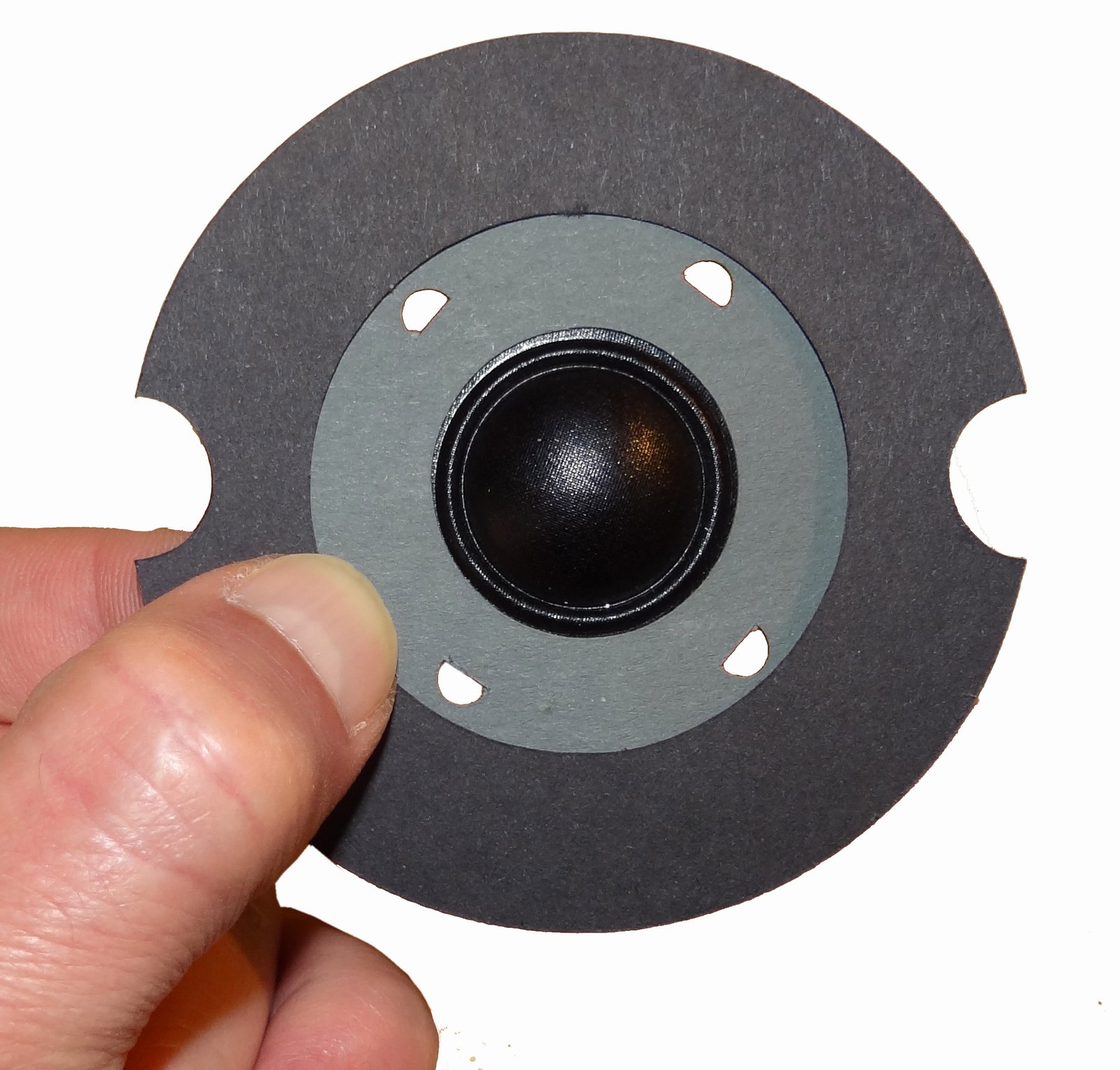

The 25mm soft-dome tweeter delivered a smooth, extended high end with excellent dispersion and minimal harshness—ideal for long listening sessions. The 165mm mid/bass driver, designed in-house, offered tight, articulate bass response for a speaker of its size, thanks to the precision of the sealed enclosure and active equalization.

One of the DITTON-25’s most praised attributes was its imaging. With time-aligned drivers and a phase-linear crossover, the speaker created a wide, stable soundstage with pinpoint instrument placement. Vocals were rendered with startling realism, and acoustic recordings revealed subtle spatial cues often lost in conventional systems.

While not a bass monster by modern standards, the DITTON-25’s low-end performance was remarkably controlled and well-integrated. It excelled in small to medium-sized rooms and was particularly well-suited to jazz, classical, and vocal-centric genres.

Notable Features and Innovations

The DITTON-25 was packed with forward-thinking features that were rare in consumer audio at the time:

Active Bi-Amplification: Each speaker housed its own dual-channel amplifier, eliminating the need for external bi-amping and ensuring optimal power delivery to each driver.
Electronic Crossover Network: Unlike passive crossovers that can introduce phase shifts and power loss, the DITTON-25’s active crossover preserved signal integrity and allowed for precise tuning.
Time-Aligned Drivers: The tweeter was mounted on an adjustable baffle, allowing users to align the acoustic centers of the drivers for optimal phase coherence.
Dual Input Options: Offering both XLR and RCA inputs, the DITTON-25 was ahead of its time in supporting balanced audio connections—a feature typically reserved for professional studio monitors.
Minimalist Cabinet Design: The compact, sealed enclosure reduced resonance and eliminated the need for a port, contributing to a clean transient response.

These features made the DITTON-25 not just a speaker, but a complete electro-acoustic system—a philosophy that would later influence high-end active designs from companies like Linn (Exakt) and KEF (LS50 Wireless).

Common Issues and Maintenance

As with any vintage electronic equipment, the DITTON-25 requires careful attention to maintain optimal performance. Common issues include:

Capacitor Aging: The internal power supplies and crossover circuits rely on electrolytic capacitors, which can dry out over time. Replacing these with modern, high-quality equivalents is often necessary.
Amplifier Drift: The original discrete amplifier modules may suffer from bias drift or thermal instability. Regular servicing and recalibration are recommended.
Driver Wear: While the soft-dome tweeters are generally robust, the foam surrounds on the mid/bass drivers can degrade after 30+ years. Replacement with modern butyl rubber surrounds is a common restoration step.
Connectors and Cabling: XLR and RCA jacks can become loose or oxidized. Cleaning or replacing these ensures reliable signal transfer.

Due to the complexity of the active electronics, servicing should be performed by a technician experienced with vintage active speakers. Fortunately, the modular design makes repairs more manageable than in fully integrated systems.

Current Market Value and Collectibility

The DITTON-25 is a rare find today. Production numbers were low, and many units were lost to obsolescence or improper storage. Those that survive in working condition command respect—and a premium—in the vintage audio market.

As of 2024, a fully functional pair of DITTON-25s in good cosmetic condition can fetch between $1,200 and $2,000, depending on provenance, finish, and service history. Units with original packaging, manuals, or rare walnut veneer finishes may sell for even more at auction or through specialist dealers.

Collectors value the DITTON-25 not only for its sound but as a historical artifact—a bridge between British hi-fi tradition and the future of active speaker design. It’s particularly sought after by enthusiasts of 1980s British audio and fans of time-aligned, phase-coherent systems.

Conclusion and Legacy

The Celestion DITTON-25 was a visionary product that never quite achieved mainstream success but left an indelible mark on audio engineering. It challenged the status quo by proving that compact, active speakers could deliver reference-grade performance with exceptional clarity and precision.

Though Celestion eventually discontinued the DITTON line and refocused on professional audio drivers, the DITTON-25 remains a testament to a brief but brilliant foray into high-end consumer audio. For those who appreciate innovation, craftsmanship, and the pursuit of sonic truth, the DITTON-25 is more than a speaker—it’s a piece of audio history.

Today, it stands as a quiet pioneer: a British active speaker that anticipated trends decades before they became mainstream. For the discerning vintage audiophile, the DITTON-25 is not just a relic—it’s a revelation.
