AR EB-101 (U.K.) (1984–198?)

It’s not flashy, it’s not exotic—just a modest turntable that, when treated right, sings with a clarity that’ll make you forget you’re spinning vinyl in a box from the mid-80s.

Overview

You don’t buy an AR EB-101 because it’s rare or because it’ll appreciate. You buy it because, for under $500 new in 1988, it delivered a sound that punched way above its price—clear, tuneful, and surprisingly focused. This isn’t some hand-built audiophile unicorn; it’s a product of Acoustic Research’s “modern” series, a pragmatic machine built to bring decent high-fidelity within reach. And while the U.K.-market version carries whispers of cost-cutting—especially in its black-painted finish—owners still report rediscovering their love of records on it. One user put it plainly: they’re “enjoying the sound,” and that’s really the point. It’s not flawless, mind you. The platter can wobble if it’s not mated just right, the foam dampers turn to dust over time, and the motor might start humming at 100Hz if it’s tired. But here’s the thing: this turntable really does respond to treatment. Tweak it, clean it, re-damp it, and it’ll reward you with a natural, engaging presentation—especially in the bass, where it reveals a clarity that lets you follow the music without strain.

It was positioned as an accessible entry into AR’s lineup, sharing its sprung sub-chassis design with the ES-1, though with a more utilitarian vinyl-covered particle board plinth and square-edged base instead of the ES-1’s rounded profile. It wasn’t trying to be luxurious, but it wasn’t trying to hide either—its clean lines and acrylic dust cover gave it a smart, functional look. And despite its modest origins, it’s capable of very satisfying results when paired with the right cartridge. One owner found the AT95E tracked securely at 1.9g with minimal inner groove distortion, while another called it a worthy partner for a Denon DL-110, a cartridge of low to medium compliance. That’s not nothing. This is a table that, in the right hands, can hold its own.

Specifications

Key Features

Isolated Subchassis Design

At the heart of the EB-101’s performance is its 3 Point Dual Spring Suspension system. The tonearm and platter ride on a fully isolated sub-chassis built around a pressed-steel “T” bar, suspended and damped at three points with foam. This design—shared with the ES-1—decouples the critical parts from the plinth, helping to reject external vibrations. It’s a classic AR approach, and it works. But time hasn’t been kind to the original foam dampers; they tend to perish, which kills the isolation and can lead to a loss of focus in the sound. Replacing them with modern equivalents—like strips of fine polyester aquarium filter pad—is a common and effective mod.

Build and Layout

The plinth is vinyl-covered particle board, functional but not fancy. Early versions have a solid top with the tonearm protruding directly from a hole in the base, while later models use a crescent-shaped armboard that makes tonearm upgrades easier. The UK-sourced units, in particular, are noted for having cheaper parts, with the black-painted version considered a low point in AR’s mid-80s output. Still, the overall layout is clean: the power supply and tonearm wiring are tucked underneath the plinth, and the main bearing uses a “thrust bearing” system lubricated with AR’s proprietary “Black Oil”—a detail that matters for long-term maintenance.

Tonearm and Upgradability

The stock tonearm is a JELCO OEM unit, described by AR as having rigid, low-resonance construction, play-free bearings, and a lockable counterweight. It’s a no-nonsense performer with an effective length of 229 mm and an overhang of 16 mm. Tracking force is adjustable from 0.5 to 3 grams, and it handles cartridges weighing between 3 and 9 grams. While it’s not a top-tier arm, it’s competent—and the table can be fitted with alternative arms using optional AR adaptors. Forum users confirm it can benefit from an upgrade, and many have taken that route, especially given the ease of access on later models with the crescent armboard.

Speed Control and Drive

Speed change is manual: you lift the belt off one pulley and place it on another. It’s not the most convenient system, but it’s reliable. The 12-pole synchronous motor runs at 500 rpm (50 Hz) or 600 rpm (60 Hz), and the FBS23.6 flat belt is the correct replacement. One thing to watch for: as the motor ages, it can develop a 100Hz mechanical hum, a telltale sign of wear. The power supply board is also a known weak point, so if the table is noisy or unstable, that’s a logical place to start.

Historical Context

The EB-101 marked the beginning of AR’s “modern” series, a shift toward more streamlined, cost-conscious designs. While earlier AR turntables had a certain engineering purity, the EB-101 reflects the realities of the mid-1980s market—where price sensitivity and mass production played a bigger role. The U.K. version, in particular, appears to have been locally sourced with cost-reduced components, a move that didn’t go unnoticed by owners. It wasn’t positioned as a flagship, but rather as a solid mid-tier option that combined decent performance with affordability. No direct competitors are named in the sources, but its $425 price in 1988 placed it in a crowded field of Japanese and European belt-drive turntables aiming for the serious hobbyist on a budget.

Collectibility & Value

Original pricing was $425 in 1988, but no current market prices are available. That doesn’t mean it’s worthless—far from it. Owners who’ve restored theirs report a total outlay of around £100 in 2013 for parts and labor, including sourcing a replacement belt (available from turntableneedles.com) and “Black Oil” from srm-tech.co.uk. Common failures include the original motor and power supply board, perished foam dampers, and a poor fit between the main and sub-platters that causes wobble. But the good news is that the EB-101 responds well to mods: users have improved stability with sorbothane washers, replaced rubber feet with adjustable spikes, and even added custom shielding over the power supply. One thing’s clear—this isn’t a “buy and play” vintage turntable. It’s a project machine. But for under a hundred bucks in parts, you can turn a neglected EB-101 into a very satisfying analog source.

eBay Listings

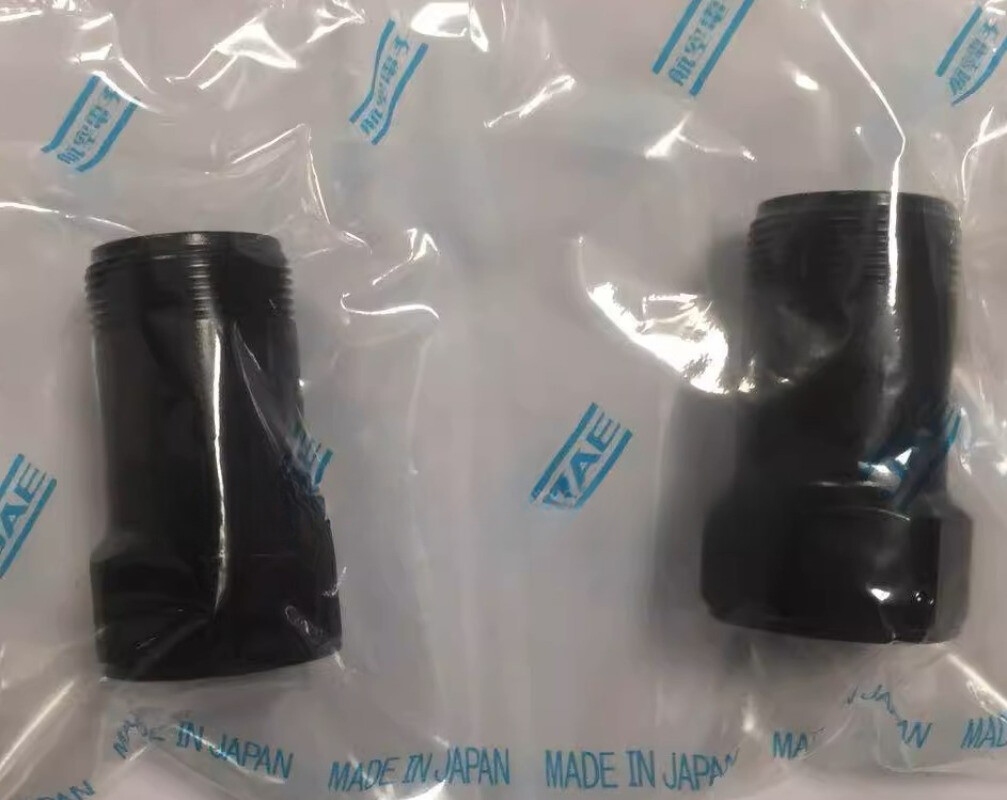

1PCS NEW FIT FOR Plug socket connector JL05-18EB1A-R
