Altec Lansing 9444B Power Amplifier (1970s)
Thirty-four pounds of Oklahoma-built steel and Motorola silicon, rated to swing eight hundred watts in bridge. It is also known for cooking one channel at a time.
Overview

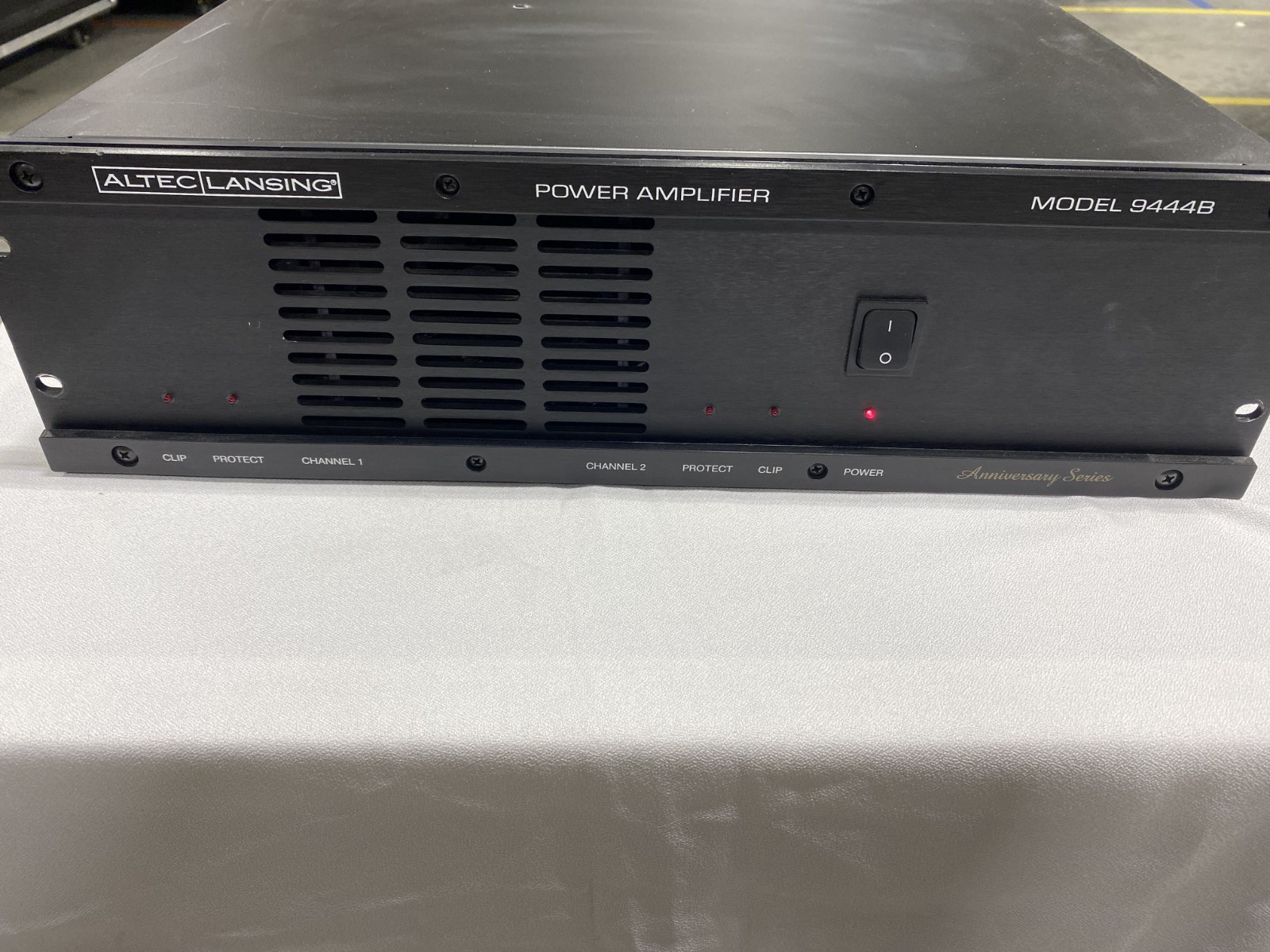

Lift one and the number makes sense. The 9444B is a rack-mount chassis in 16-gauge steel with a 3/16-inch 5052 aluminum alloy front panel, 34 lbs net and 42 lbs in the shipping carton. This is Altec Lansing's Anniversary Series power amplifier, a solid-state dual-mono design from the 1970s aimed at studio monitoring, sound reinforcement, and cinema - the same rooms where Altec's A7 "Voice of the Theatre" systems already lived. Altec was already renowned for its loudspeakers, and it extended that reputation into power amplification with models like the 9444B. The company's own manual carries the Oklahoma City address and the Mark IV corporate line.
The manufacturer's literature quotes the headline numbers at three different AC line conditions. That says a lot about how Altec expected this amp to be deployed. At 120 volts AC, maximum midband output is rated above 400 watts per channel into 4 ohms in dual mode, or more than 800 watts into 8 ohms bridged, both referenced to 1 kHz at 1% THD. Let the line sag ten percent to 108 volts and those figures fall to 325 watts per channel and 650 watts bridged. Sag seventeen percent to 100 volts and you're looking at 230 and 460. Altec printed all three columns because installers needed to know what the amp would do on a real circuit, not a lab bench. Sound and Communication (October 1993, p.48) documented large-scale installations of Altec equipment in commercial buildings, including dozens of 409-4T ceiling loudspeakers with 70.7-volt transformers in restrooms.
Owners describe the sound as clean and neutral, with the high damping factor doing the audible work: tight cone control, precise bass, quick transients. It is not a warm amplifier. It was engineered for accuracy rather than coloration, and it stays sonically invisible in a way that suits monitoring and mastering more than casual listening.
Key Features
Dual-Mono Architecture and a Damping Factor of 200
The 9444B is essentially two independent amplifiers sharing one chassis, which keeps crosstalk low and channel separation high. That is the reason it earned a place in studios where a stereo image has to hold still. The damping factor is rated above 200 from 20 Hz to 1 kHz in dual mode at 8 ohms, falling to above 75 at 20 kHz. Altec's own manual walks through the arithmetic: divide the rated 8-ohm load impedance by the damping factor and you get an output impedance of 0.04 ohms. The manual then goes further than most manufacturers would, printing a table of two-wire cable losses by gauge and giving installers an equation for calculating the maximum cable run that preserves a target damping factor at the load - 30 for paging systems, 50 for high-fidelity music. The documentation assumes the reader is a working professional.
Motorola Output Devices and a Known Failure Mode
Inside, the power channel runs four Motorola MJ15025 and four MJ15024 output transistors. When these amps fail, and they do, it's usually one channel at a time, with the clipping light lit and audible distortion. One documented repair replaced all eight Motorola devices, and the amp worked only briefly before the channel dropped again. That suggests the transistors are often a symptom rather than the root cause. Anyone buying one of these should assume the output stage has been or will be worked on.
Protection, Relays, and Passive Cooling
Protection covers shorted output terminals, over-temperature, and RF interference, with separate load protection against startup and shutdown transients, DC faults, and subsonic signals. Relays handle both protection and signal routing, and they stick or fail with age - a known service item. Cooling is passive, via convection across internal heatsinks. The amp is silent, but it needs clean, unobstructed airflow and a rack that isn't packed solid. The fuse specified for 120-volt operation is a Littelfuse SAB 10 A/250 V Slo-Blo ceramic cartridge. A 5 A/250 V fuse ships for 220/240-volt use, so the amp was built for both markets.
Octal Sockets, Step Attenuators, and the Optional Accessory Line
The rear panel carries octal sockets with four "U" jumper plugs installed as standard. Altec's accessory catalog for the amp is unusually deep: a 14712A power limiter, a 15515A input bridging transformer with pad, 15524A and 15525A 70-volt transformers rated at 300 and 600 watts, a 15567A 300-watt autoformer, and a family of active crossovers and filters - the 15581A 24 dB/octave Linkwitz-Riley, plus 15594A and 15595A 18 dB/octave low- and high-pass filters in various corner frequencies. This is a distribution amplifier as much as a hi-fi component. A variant, the 9444B/SA, swaps the standard input level controls for precision stepped attenuators with 1 dB steps down to -20 dB and progressively coarser steps beyond that, reaching full attenuation at click position 31.
Historical Context
The 9444B belongs to the 1970s, the decade when solid-state amplifiers displaced tube designs in professional audio. It was designed for recording studios, movie theaters, broadcast facilities, and touring PA rigs. It was part of Altec's professional audio lineup and one of several amplifiers the company offered. The 9444A and 9441A appear alongside it in period documentation, and the 9444B/SA shares its manual with the standard model. Altec's advertising and its own manual billing position it as an Anniversary Series product. Competitively, the 9444B was less celebrated than contemporaries from Crown and McIntosh, and it earned its reputation among working engineers on rugged dependability rather than prestige.
Collectibility & Value
Collectibility sits around 7/10. The 9444B is not chased the way high-end audiophile amplifiers are, but it is well regarded among vintage pro audio enthusiasts and studio gear collectors. Original unmodified examples with working VU meters are the most desirable. The pricing record conflicts: published estimates put market value at $400 - $800 depending on condition, while recent eBay asking prices for the model have run $180 - $300 across four separate listings. A forum listing from an undated thread quotes $250 in good (7-8) condition. Asking prices have drifted below the older estimates, and refurbished or recapped units command a premium over that baseline.

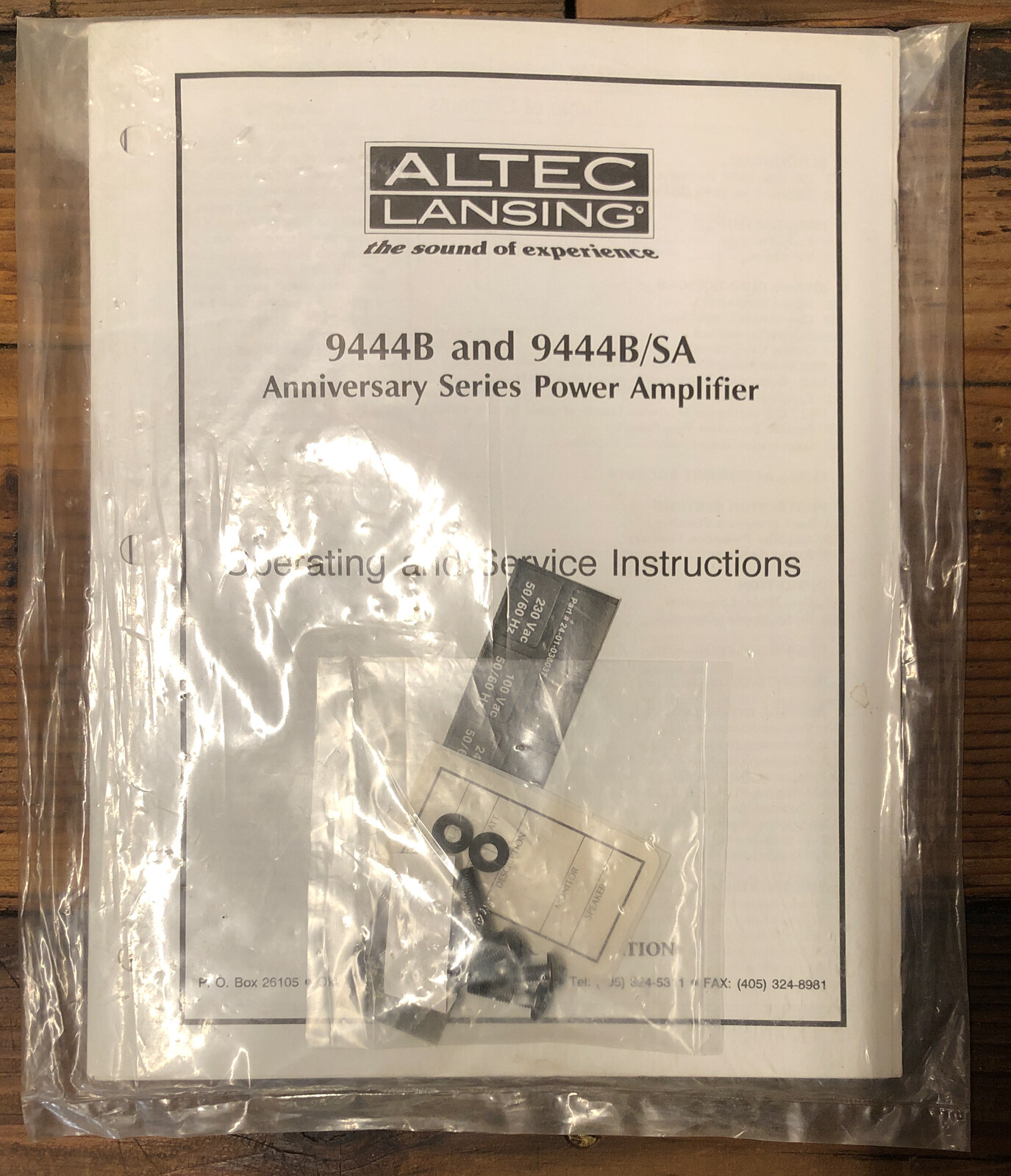

Buying advice is straightforward. These amps are old enough that electrolytic capacitors in the power supply and signal path should be checked and replaced as needed. Aging caps cause hum, sag, and outright failure, and a third-party restoration kit exists specifically for filter capacitor rebuild work. Contact cleaner on jacks, switches, and any variable controls is standard. Relays should be tested. Heatsinks should be clean and unobstructed. Bias should be verified if the amp is run in mono or high-power mode. Any unit that has sat dormant for years should come up on a variac or current limiter rather than straight into the wall. A 64-page service manual exists, which is more documentation than most gear this age can claim.
