Altec Crescendo

Name: Altec Crescendo
Brand: Altec

1974 - 1970s

Altec Crescendo - floor system for 604E/605B coaxial monitors (1974)

The Altec Crescendo is a bit of a unicorn—a furniture-grade floorstanding cabinet cooked up by the Japanese company Elektri and blessed by Altec Lansing. Its whole reason for being was to give the legendary 604E and 605B coaxial studio monitors a proper home in your living room. Introduced in 1974, it wasn't just a box; it was a tuned, optimized vessel that let those brutalist, point-source pro drivers sing with a domestic politeness they never knew in the control room.

Specifications

Type	2-way, 1-speaker coaxial system, bass-reflex floorstanding
Driver	604-8G or 605B 15" coaxial duplex speaker
Coaxial Configuration	15" woofer with integrated multicellular horn and compression driver
Crossover Frequency	604-8G: 1.5 kHz 605B: 1.6 kHz
Nominal Impedance	8 Ω or 16 Ω (depending on driver version)
Power Handling	35W continuous
Frequency Response	20 Hz - 20 kHz
Sensitivity	Approximately 98-100 dB/W/m (typical for 604-8G/605B)
Dimensions	690 mm W × 1,018 mm H × 485 mm D (27.2" × 40.1" × 19.1")
Weight	12.5 kg (27.6 lbs) per speaker (cabinet only, without driver)

Driver Configuration

The magic of the Crescendo is entirely in the driver you drop into it. It was designed for two of Altec's coaxial titans, but here's the crucial bit often missed: the later, more common driver wasn't the 604E, but its successor, the 604-8G. Think of the Crescendo as the ultimate host for these magnificent, complicated beasts.

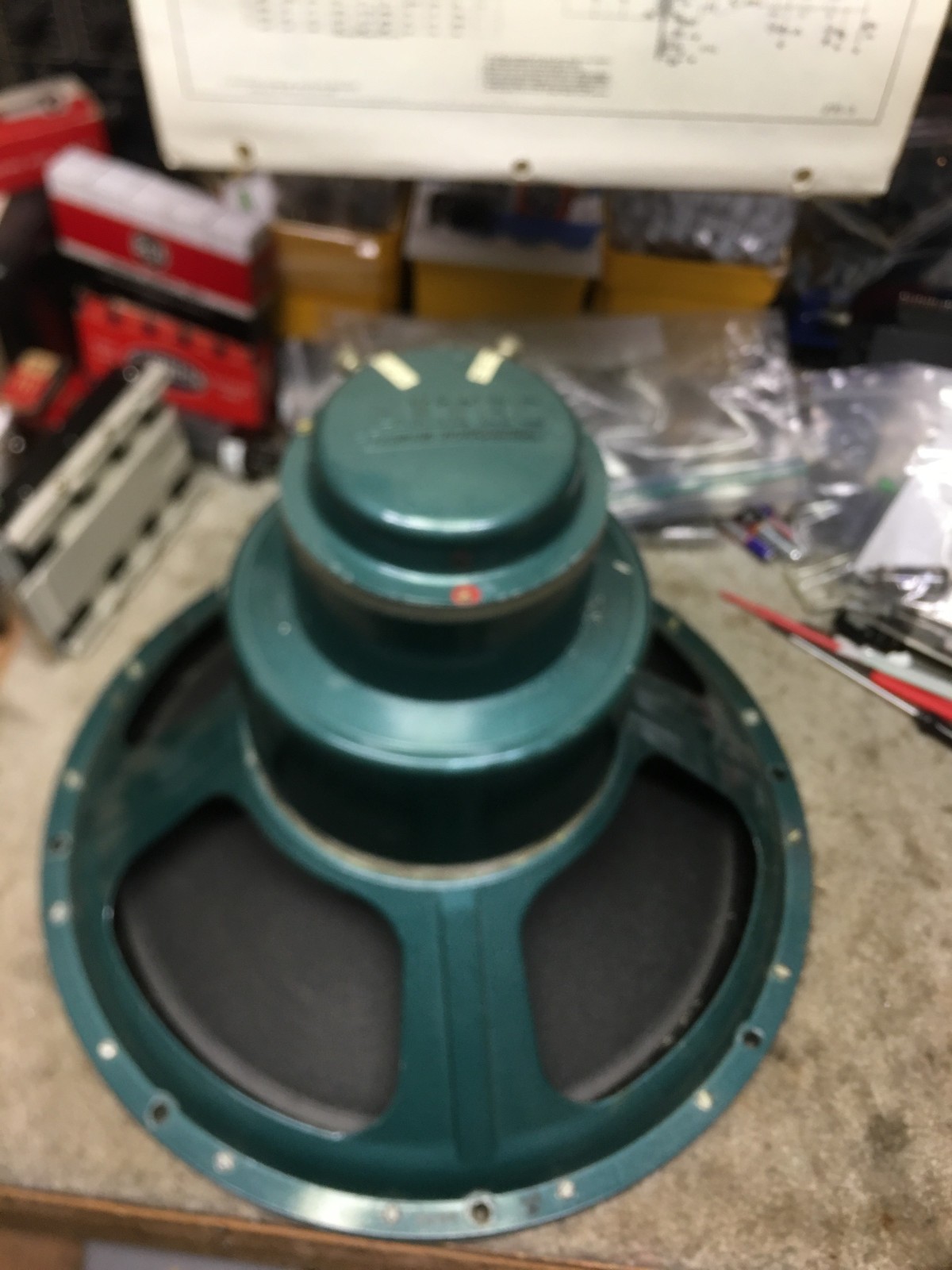

604-8G Super Duplex (1973 onward)

Type: 15" coaxial duplex speaker. This is the one you'll usually find. Woofer: 15" with a beastly 3" voice coil and Alnico V magnet. Compression Driver: That glorious 1.75" aluminum diaphragm sitting right in the throat of the multicellular horn. Crossover: Internal network at 1.5 kHz. Sensitivity: A whopping 98 dB/W/m or better—these things play loud with a whisper from your amp. Impedance: Typically 8Ω, which is more amplifier-friendly.

605B Duplex (1959-1964)

Type: 15" coaxial duplex speaker, the earlier classic. Woofer: 15" with a shared magnetic circuit for the HF driver, a clever but slightly less efficient design. Compression Driver: Same fantastic 1.75" diaphragm and horn. Crossover: 1.6 kHz internal crossover. Sensitivity: About 95 dB/W/m—still very efficient, but you'll notice you need a bit more power than with the 604-8G. Impedance: Often 16Ω, which tube amp lovers might prefer.

While you could order the Crescendo with either, the 604-8G became the standard pairing. It's the more refined, higher-output driver, and frankly, it's what makes the system truly sing.

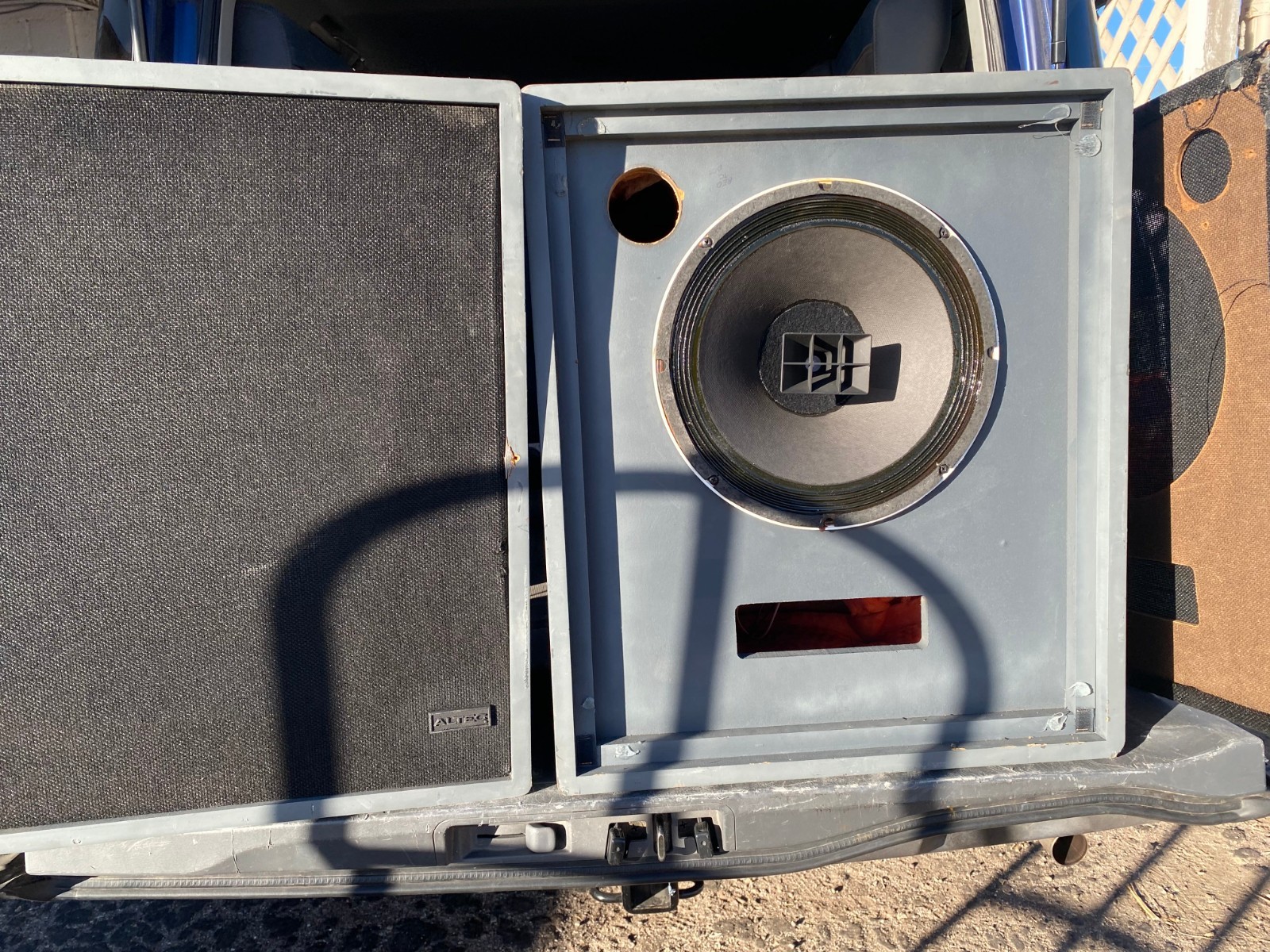

Cabinet Design

Elektri didn't just slap some wood around a 604. The Crescendo cabinet is a proper, calculated bass-reflex design, tuned to wrangle the best low-end extension out of that big coaxial cone. It's tall and slim—just over a meter high—which gives it the internal volume it needs without looking like a studio monitor coffin in your den. The aesthetics are pure, calm 1970s Japanese modernism; clean lines, restrained grilles, and a finish meant to disappear into both Western and Japanese interiors. It’s furniture, but furniture with a port tuned for a 15-inch Alnico magnet. The driver mounts from the front, thank goodness, so you're not wrestling the whole cabinet apart for service.

Coaxial Advantage

This is the whole point. Forget separate tweeters and woofers spraying sound from different spots. With a coaxial like the 604 or 605, the high frequencies fire right from the center of the low-frequency cone. This gives you true point-source radiation. What does that mean for your ears? Phenomenal phase coherence, so notes start and stop together across the frequency range. A consistent, predictable dispersion pattern thanks to that multicellular horn controlling the highs. And most importantly, a shockingly natural and stable soundstage—instruments lock into place in three dimensions in a way that separate drivers struggle to match. It's the sound of a classic recording studio control room, just wrapped in nicer wood.

Historical Context

By 1974, audiophiles were getting wise. They knew the gear used to *make* records often sounded more real and direct than the flashy hi-fi gear sold to play them. The 604 and 605 were studio legends, but they lived in ugly, utilitarian boxes. Enter Elektri in Japan, who designed this elegant solution and got Altec's stamp of approval. It was a premium, niche product. In Japan, the 605B version sold for a hefty ¥228,900—serious money. It was for the listener who wanted the uncompromising technical performance of a pro monitor but demanded something that wouldn't start an argument with their spouse over decor. A brilliant, collaborative stopgap in the era when pro audio and hi-fi began their passionate, ongoing affair.

Design Philosophy

The Crescendo's philosophy is beautifully simple: take a no-compromise professional transducer and house it in a no-compromise domestic enclosure. Every decision flows from that. The cabinet is acoustically optimized for that specific driver, not just a generic big box. The aesthetics are neutral and integrated—the technology is the star, not the cabinetry. It represents a complete system approach, the kind of thoughtful, single-purpose design that's all too rare.

Performance Characteristics

Plug in a good amp and the Crescendo delivers that classic, dynamic, "live" Altec sound. The efficiency is breathtaking—even a few watts from a flea-powered tube amp gets you lifelike volume and dynamics. The bass from that tuned cabinet is solid and extended, far better than the driver would manage in a poorly sized box. The midrange is where these coaxes truly live, offering a palpable, immediate presence to voices and instruments. The top end from the compression driver is detailed and energetic, though it's a specific flavor—it's not the airy, ultra-smooth top of a modern ribbon tweeter, it's the articulate, direct sound of a horn. You're in the control room with the band, not in a velvet-lined concert hall. Some find it addictive, others need time to adjust. There is no ignoring it.

Amplifier Pairing

This is the fun part. That high sensitivity (95-100 dB!) opens up a world of amplification. Low-powered tube amps are a magical match—think 5 to 20 watts from a classic EL84, 6BQ5, or even a single-ended triode (SET) design. The speaker will reveal every nuance and texture your amp can produce. Quality vintage solid-state from the 70s also works brilliantly, offering control and slam. Modern high-quality Class A or D amps? Absolutely. Just remember to match the impedance (usually 8Ω for the 604-8G, often 16Ω for the 605B), especially with tube outputs. Feed it clean power and it will reward you with a big, bold, and incredibly engaging sound.

Legacy and Collectibility

Today, the Altec Crescendo is a bona fide collector's prize, and for good reason. It's rare, it's smartly designed, and it houses one of the greatest speaker drivers ever made. A clean, original pair with 604-8Gs can easily command $3,000 or more. The 605B versions are rarer and appeal to the vintage purist, sometimes trading for a bit less. Its collectibility hinges on that perfect storm: legendary drivers, an optimized, period-correct cabinet, and the story of pro audio meeting domestic hi-fi. If you find a pair, jump on them.

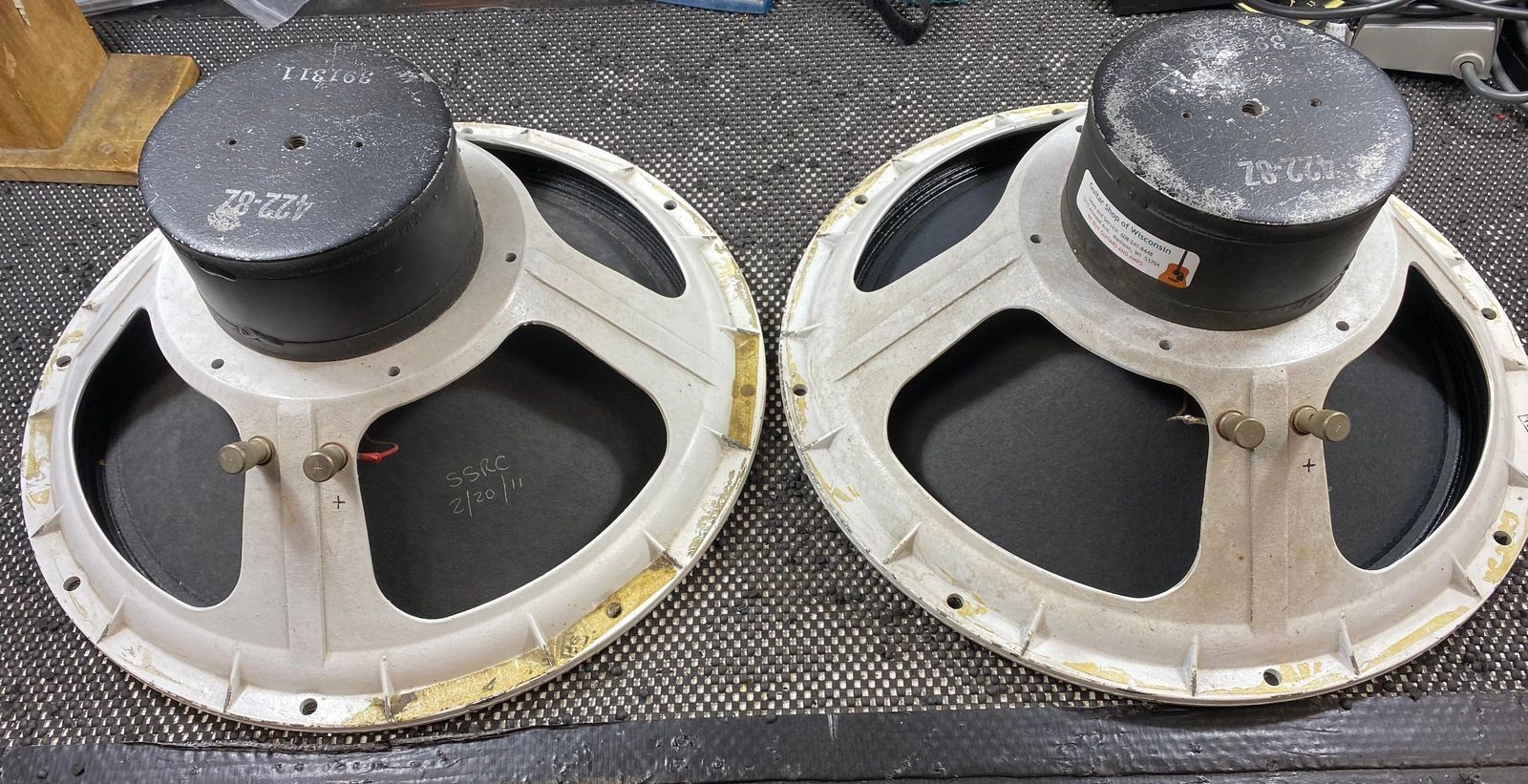

Restoration is usually about the driver, not the cabinet. Plan on a professional check of the 604/605: the crossover capacitors are definitely due for replacement, the Alnico magnets might need recharging, and the woofer suspension (often cloth) should be inspected. The cabinets are typically robust, but a careful refinish can work wonders. The goal is to preserve that perfect synergy—the Crescendo is more than the sum of its parts.
