Akai GX-69: The Pinnacle of Japanese Reel-to-Reel Engineering

Name: Akai GX-69
Brand: Akai

In the golden era of analog audio, when fidelity was measured not in bits and sample rates but in tape speed and head alignment, few machines captured the hearts of audiophiles and recording enthusiasts quite like the Akai GX-69. Released in 1976, this open-reel tape recorder stands as one of the most sophisticated and meticulously engineered consumer/pro-sumer reel-to-reel decks ever produced by Akai. While not as widely known as some of its contemporaries from Studer or TEAC, the GX-69 represents a high-water mark for Japanese precision, build quality, and sonic transparency.

Born during a time when home recording was becoming increasingly accessible, the GX-69 was aimed at serious hobbyists, semi-professional studios, and audiophiles who demanded studio-grade performance without the six-figure price tag. Akai, already respected for its earlier GX-series models like the GX-400 and GX-635, pushed the envelope with the GX-69—delivering a machine that balanced cutting-edge engineering with elegant usability.

Technical Specifications

The GX-69 was built to impress with its comprehensive feature set and robust construction. Designed for ¼-inch tape, it supported multiple speeds (7.5, 15, and 30 inches per second), allowing users to tailor their recordings for either extended play or maximum fidelity. Its three-head configuration (separate record, playback, and erase heads) ensured optimal performance across all functions, while the dual-capstan transport system minimized wow and flutter—hallmarks of a truly high-end deck.

Specification	Detail
Model	Akai GX-69
Year Introduced	1976
Format	¼-inch open-reel tape
Tape Speeds	7.5, 15, 30 ips (selectable)
Heads	3-motor, 3-head (erase, record, playback)
Transport System	Dual capstan, direct-drive motors
Wow and Flutter	< 0.07% (15 ips, WRMS)
Frequency Response	30Hz – 20kHz (15 ips, ±3dB)
Signal-to-Noise Ratio	> 68 dB (Dolby B/C compatible)
Input/Output	Line In/Out (RCA), Mic In (¼"), Phones Out
Recording Modes	Full-track, half-track, stereo
Bias & EQ	Adjustable bias, selectable IEC/CCIR equalization
Power Requirement	120V AC, 60Hz (varies by region)
Dimensions	480 × 165 × 380 mm (W×H×D)
Weight	14.5 kg (32 lbs)

The GX-69 also featured Dolby B and C noise reduction compatibility, a significant advantage during an era when tape hiss was a constant concern. Its front panel included large VU meters with peak-hold functionality, a hallmark of professional gear, and a comprehensive array of controls for bias, equalization, and level calibration—features typically reserved for studio machines.

Sound Characteristics and Performance

The GX-69’s sonic signature is best described as transparent, detailed, and dynamically expressive. Thanks to its high-quality tape heads (typically made by TDK or Akai’s own precision division) and low-noise electronics, the deck captures music with remarkable clarity and minimal coloration. At 15 and 30 ips, the frequency response extends deep into the highs and lows, revealing textures and spatial cues often lost on cassette decks or lower-tier reel-to-reel models.

Users frequently praise the GX-69 for its excellent stereo imaging and low distortion, making it ideal for mastering, live recording, or archiving vinyl collections. The dual-capstan transport ensures rock-solid speed stability, resulting in negligible wow and flutter—critical for maintaining pitch accuracy, especially with classical or acoustic material.

When paired with high-quality tape (such as Ampex 456 or BASF SM911), the GX-69 can produce results that rival professional studio recorders of the era. Its ability to handle both delicate acoustic passages and high-level transients without compression or distortion speaks to its well-balanced design.

Notable Features and Innovations

What set the GX-69 apart from its peers was its hybrid professional/consumer design philosophy. While many high-end decks were either overly complex or lacked user-friendly features, the GX-69 struck a rare balance:

Three-motor direct drive system: Each motor independently controls the supply reel, take-up reel, and capstan, eliminating belt slippage and ensuring precise tape tension.
Selectable equalization and bias: Advanced users could fine-tune recording settings for different tape types, maximizing fidelity and headroom.
Front-panel calibration controls: Rare in consumer decks, these allowed for on-the-fly adjustments to record levels and bias—essential for achieving optimal modulation.
Dolby B/C integration: A forward-thinking inclusion that improved signal-to-noise ratio without degrading the audio.
Solid mechanical construction: The chassis was built from heavy-gauge steel with shock-mounted subassemblies to reduce vibration and crosstalk.

The GX-69 also featured auto-reverse playback capability in certain configurations (though not true auto-reverse recording), a convenience feature that was uncommon in high-end reel-to-reel decks at the time.

Common Issues and Maintenance

Like all vintage reel-to-reel machines, the Akai GX-69 requires careful maintenance to perform at its best. Common issues include:

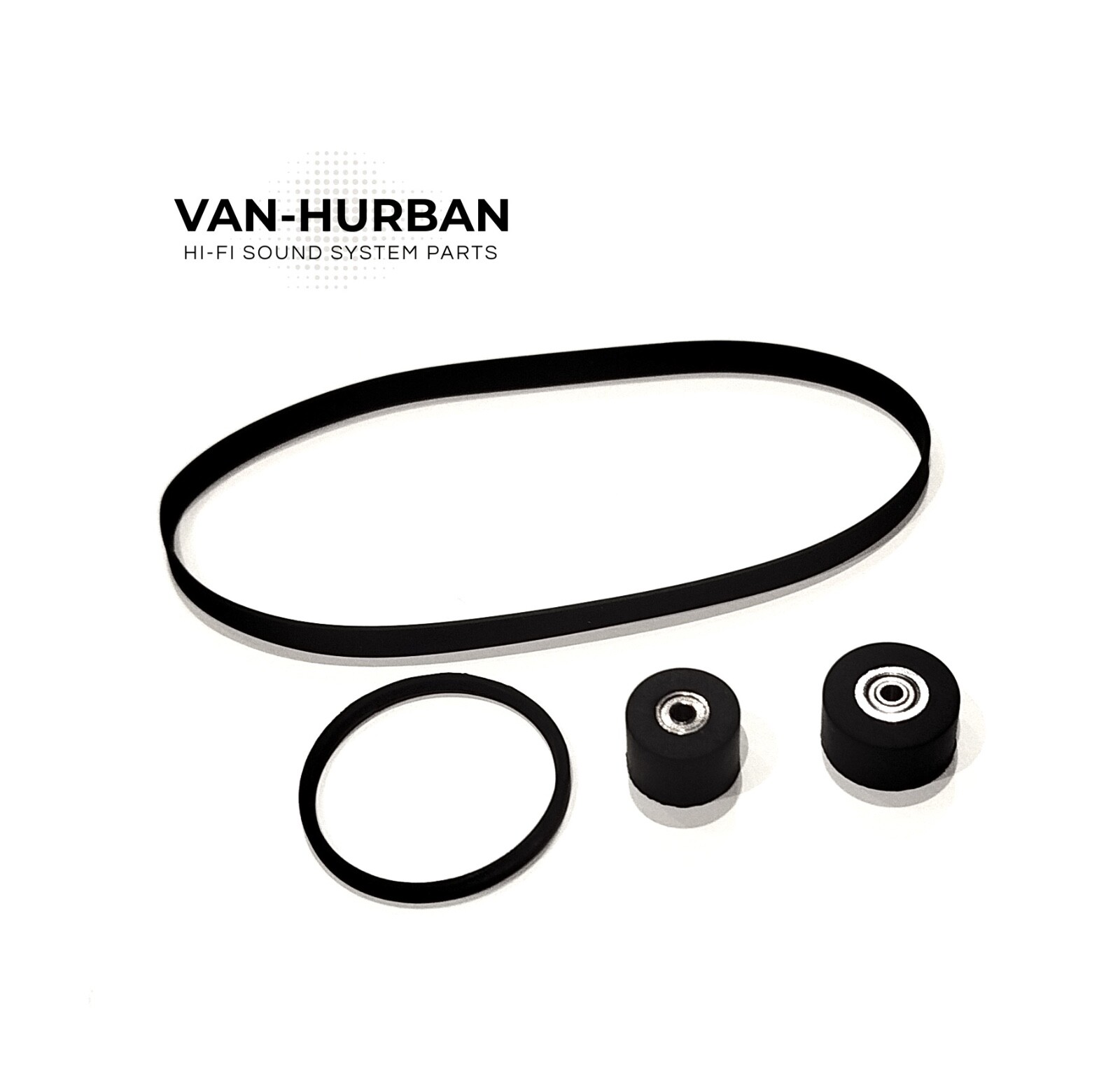

Deteriorated rubber parts: Idler tires, pinch rollers, and belts (if present in auxiliary mechanisms) can harden or crack over time. These should be replaced with modern equivalents.
Dirty or worn tape heads: Regular cleaning with isopropyl alcohol and demagnetization are essential. Head wear can affect high-frequency response and require resurfacing or replacement.
Capstan shaft oxidation: If the machine has been stored improperly, the capstan shaft may develop rust, affecting speed stability.
Lubrication of transport mechanisms: Dry gears and linkages can lead to erratic tape movement or motor strain.

Given its complexity, it’s recommended to have a GX-69 serviced by a technician experienced with vintage tape decks before regular use. When properly maintained, however, the GX-69 is remarkably reliable—many units from the late '70s still operate flawlessly today.

Current Market Value and Collectibility

The Akai GX-69 is highly sought after by analog audio enthusiasts and reel-to-reel collectors. While not as ubiquitous as TEAC or Sony models, its reputation for quality has grown steadily in recent years. In working condition, a GX-69 typically sells for $800 to $1,500, depending on cosmetic condition, included accessories, and proven service history.

Fully restored units with new belts, cleaned heads, and calibrated electronics can command even higher prices, especially if paired with original boxes or documentation. Its relative rarity—compared to mass-market decks—adds to its appeal among collectors seeking standout pieces for display or use.

Conclusion and Legacy

The Akai GX-69 is more than just a tape recorder—it’s a testament to a time when audio engineering was a craft, and every component was designed to last. With its studio-grade performance, elegant design, and user-focused features, it remains one of the most capable consumer reel-to-reel decks ever made.

While the digital age has rendered tape obsolete for most, a dedicated community continues to celebrate machines like the GX-69 for their tactile experience, warm sound, and mechanical beauty. For those who appreciate the art of analog recording, the Akai GX-69 isn’t just a relic—it’s a working masterpiece, ready to capture sound with the same precision and passion it did nearly 50 years ago.

If you’re lucky enough to find one in good condition, treat it with care, service it properly, and let it sing. The GX-69 deserves nothing less.
