Akai GX-6: The Precision-Built Workhorse of the Reel-to-Reel Era

In the early 1970s, Akai made a name for itself in high-fidelity audio with a line of open-reel tape recorders. The Akai GX-6 was the flagship of its consumer/pro-sumer reel-to-reel decks. It came out in 1971 for serious music fans, broadcasters and semi-professional studios who wanted exceptional tape performance without the price of full broadcast equipment.

The GX-6 is not as well documented as contemporaries like the TEAC A-3340 or the Sony TC-800B. It still has a loyal following among vintage audio collectors and analog tape purists.

Technical Specifications

The GX-6 was built around a dual-capstan, three-head transport system, a hallmark of high-end tape decks of the era. It supported both 7.5 and 15 inches per second (ips) tape speeds, with some variants reportedly offering 3.75 ips for extended recording time. The machine used a full logic control system, meaning tape functions (play, record, stop, rewind, etc.) were mechanically interlocked to prevent user error—a sophisticated feature for its time.

Specification	Detail
Model	GX-6
Year Introduced	1971
Format	1/4" open-reel (2-track, 4-channel capable)
Tape Speeds	7.5 ips, 15 ips (some models: 3.75 ips)
Heads	Three-motor, three-head system (erase, record, playback)
Transport System	Dual capstan, full logic mechanical control
Frequency Response	30Hz – 20kHz (±3dB at 15 ips, 3% THD)
Signal-to-Noise Ratio	~68 dB (with Dolby B, if equipped)
Wow and Flutter	< 0.15% (WRMS)
Output Level	0.8 V (line), 2 mV (mic)
Input Level	0.3 V (line), 0.5 mV (mic)
Recording Modes	Stereo, monophonic, 4-track (via adapter)
Equalization Settings	120 µs, 70 µs, 35 µs (switchable)
Power Supply	110–120V AC (60Hz), 220–240V versions for export
Dimensions	440 mm (W) × 150 mm (H) × 380 mm (D)
Weight	~14 kg (31 lbs)
Features	VU meters, bias/tone controls, microphone inputs, line inputs/outputs, remote control jack

Note: Some GX-6 units were optionally equipped with Dolby B noise reduction, though this was not standard across all production runs. The inclusion of switchable equalization times (35, 70, and 120 µs) allowed users to optimize performance for different tape formulations—such as ferric, chrome, or metal tapes—making the GX-6 remarkably versatile.

Sound Characteristics and Performance

Many analog enthusiasts describe the GX-6 sound as warm, detailed and dynamic, and call it "musical" and "engaging." It has a three-head design with separate record and playback heads, so you can monitor the recorded signal while recording. Home recordists and musicians value that a lot.

At 15 ips, the GX-6 has excellent high-frequency extension and low distortion. Vocal timbre and instrumental texture come through with remarkable clarity. The dual capstan system keeps tape-to-head contact stable, which cuts speed fluctuations and gives it a low wow and flutter rating. Bass is tight and well controlled, without the flabbiness of lesser decks.

Paired with high-quality tape stock such as Ampex 406, BASF SM911 or TDK SA, the GX-6 gives a listening experience that rivals many modern digital recordings for spatial depth and emotional impact.

Notable Features and Innovations

The GX-6 was packed with features that put it at the top of Akai’s lineup:

Full Logic Transport: Prevents conflicting operations (e.g., trying to record while rewinding), protecting both the machine and the tape.
Selectable Equalization: Uncommon in consumer decks, this allowed optimization for different tape types, enhancing fidelity.
Precision VU Meters: Large, centrally mounted analog meters provide accurate level monitoring.
Manual Bias and Level Calibration: Advanced users could fine-tune recording levels and bias for maximum headroom and minimal distortion.
Remote Control Capability: Some versions included a jack for an external remote, useful in studio or broadcast settings.
4-Track Compatibility: With the use of a special head and adapter, the GX-6 could function as a 4-track recorder, appealing to home studio users.

The front panel is brushed aluminum, with large control knobs and an industrial-grade build. That is typical of early 1970s Japanese hi-fi: functional, and built to last.

Common Issues and Maintenance

Like all vintage reel-to-reel machines, the Akai GX-6 needs careful maintenance to perform at its best. After 50+ years, common issues include:

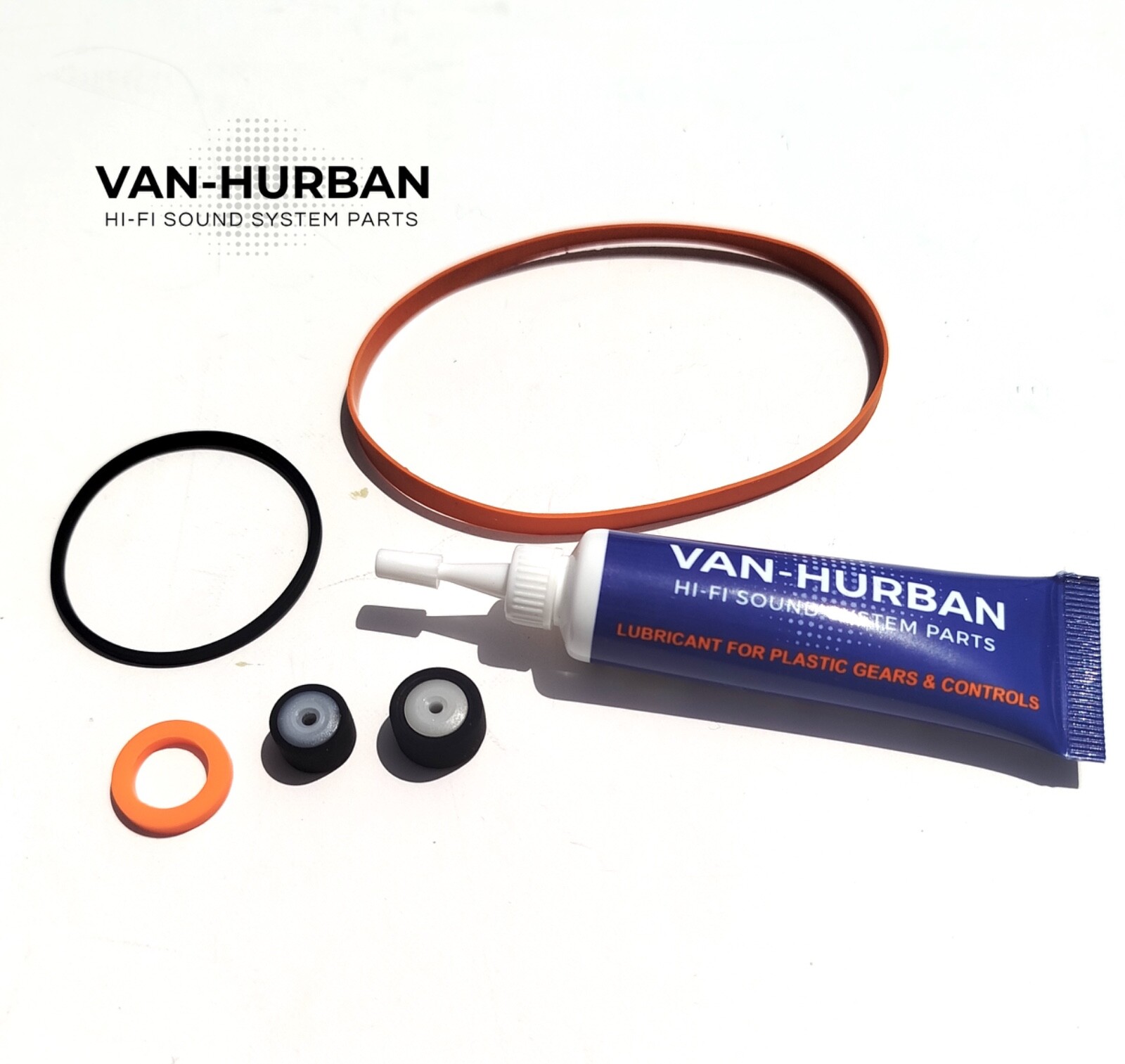

Deteriorated Rubber Components: Idler tires, pinch rollers, and drive belts may have hardened or cracked. These must be replaced with modern equivalents.
Sticky Tape Guides: Accumulated oxide and old lubricants can gum up metal guides and heads. Cleaning with isopropyl alcohol and demagnetizing are essential.
Worn Capstan Bushings: Can lead to speed instability. Re-lubrication or replacement may be needed.
Capacitor Aging: Power supply and signal path capacitors may have dried out, leading to hum, noise, or channel imbalance.
Head Wear: Playback and record heads may be worn or misaligned, especially if the deck was heavily used. Professional resurfacing or alignment is recommended.

A qualified technician should service a GX-6 before it gets used. Once properly restored, it is known for its reliability and long service life.

Current Market Value and Collectibility

The Akai GX-6 is not as common as some other vintage reel-to-reel decks, which adds to its appeal among collectors. Well-maintained or fully refurbished units typically sell for $600 to $1,200, depending on condition, included accessories, and whether Dolby noise reduction is present.

Units with original packaging, manuals and spare parts command a premium. The GX-6 was not mass-produced in the same quantities as lower-tier models, so a complete, working example is increasingly rare.

Akai’s reputation for quality in this era and the GX-6’s position as a top-tier model add to its collectibility. Analog tape enthusiasts, home recording historians and people building period-accurate vintage studios especially seek it out.

Conclusion and Legacy

The GX-6 is a high point in Japanese reel-to-reel engineering. It blends professional features with consumer accessibility, and its performance still impresses today. Brands like Revox and Studer overshadow it in popular memory, but the GX-6 holds its own for build quality, sonic accuracy and mechanical sophistication.

It is a functional piece of audio history, with tactile operation, warm analog sound and a mechanical feel that digital can't replicate.

If you’re lucky enough to find a GX-6 in good condition—or are willing to invest in a restoration—you’re not just acquiring a tape deck. You’re preserving a legacy of analog excellence from an era when every note was captured with care, one reel at a time.

Market Value

┌──────────────────────────────────────────────────────────────────────────┐
│ AKAI GX-6                                                       Nov 2026 │
├──────────────────────────────────────────────────────────────────────────┤
│ High      $2,620                                  Latest          $2,620 │
│ Median    $1,143                                  Trend                — │
│ Low       $78                                     Volume           ~2/mo │
├──────────────────────────────────────────────────────────────────────────┤
│ $3,000 ┤                                                                 │
│        │                                                                .│
│        │.                                                                │
│ $1,736 ┤                                .                                │
│        │                 .                                               │
│        │     .           .     .               .          . .            │
│        │        .               .                                        │
│    $50 ┤          .     .                                                │
│        ├─────────────────────────────────────────────────────────────────│
│    vol │▄    ▄  ▄ ▄     ▄█     ▄▄       ▄      ▄          ▄ ▄           ▄│
│        └─────────────────────────────────────────────────────────────────│
│         2026-02                      2026-05                      2026-08│
└──────────────────────────────────────────────────────────────────────────┘
