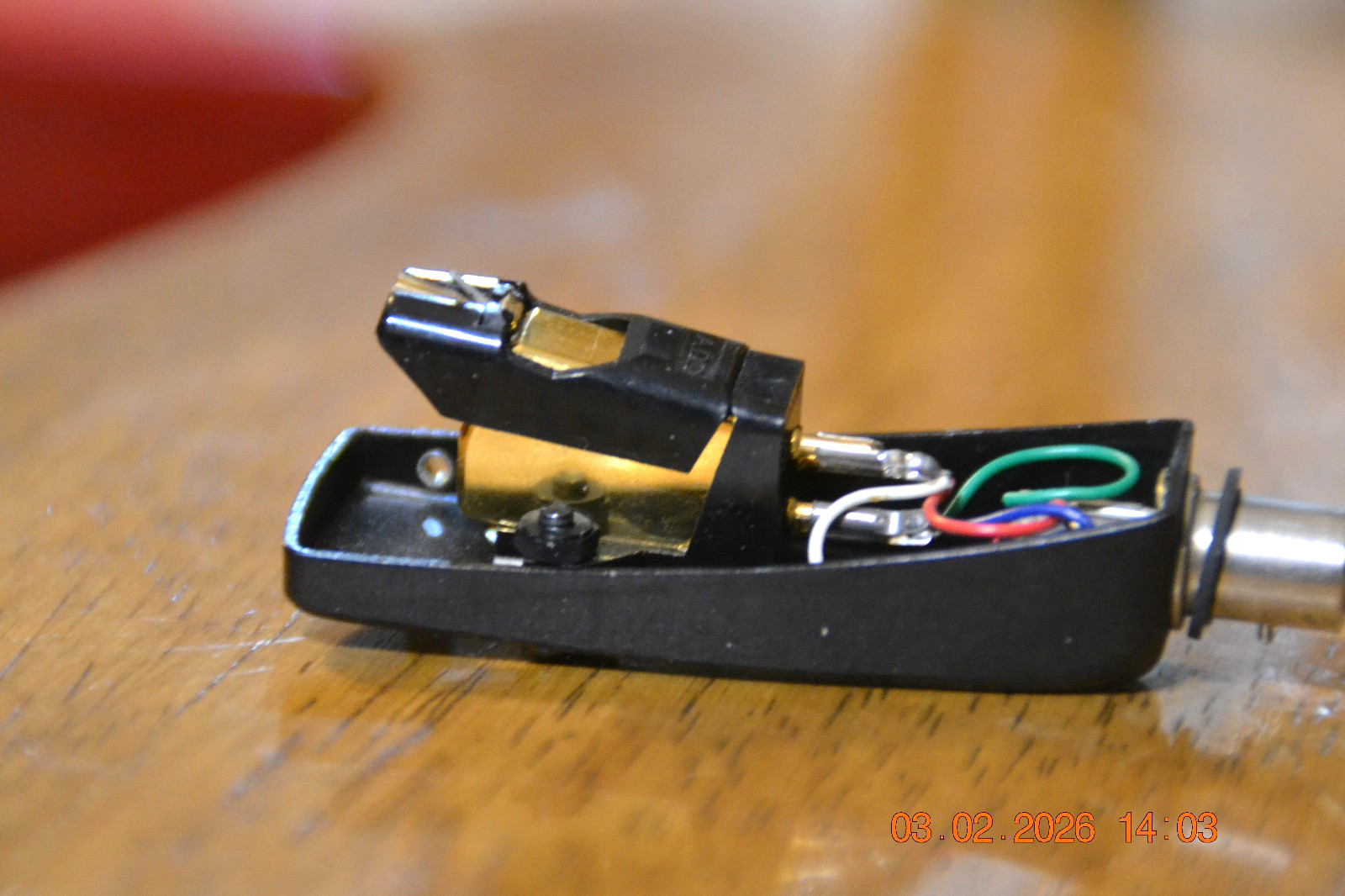

ADC XLM (1970s–1980s)

Name: ADC XLM
Brand: ADC

A whisper-light stylus that dances through grooves like it’s defying physics—until you realize it actually was.

Overview

There’s a moment when you first lower the XLM onto a record and the sound that rises isn’t just music—it’s revelation. Instruments occupy space with three-dimensional clarity, bass notes bloom without bloat, and high frequencies shimmer with an almost liquid transparency. This isn’t exaggeration; it’s what owners across decades have described, from audiophiles in 1975 who called it a “reference standard” to modern listeners rediscovering it on forums, stunned by how alive their records suddenly sound. The ADC XLM wasn’t just another moving magnet cartridge—it was a statement. Built during the golden age of analog innovation, it leveraged a patented “induced magnet” design that shifted the magnetic mass away from the moving parts, slashing moving mass to near-nothing. The result? A cartridge that could track at feather-light forces—often as low as 0.75 grams—without skating or mistracking, provided you gave it a compliant arm and a stable setup.

The XLM line evolved over the years, with the MkI, MkII, and MkIII iterations each refining the formula. The original XLM and MkII used a bushed elliptical stylus, later upgraded in the MkII Improved to a Diasa (diamond-on-sapphire) elliptical tip, improving wear resistance and detail retrieval. The MkIII pushed further with a nude elliptical diamond, offering even greater precision. Output voltage crept down slightly across generations—6.0 mV in the MkI, 5.6 mV in the MkII, and 5.5 mV in the MkIII—not because performance dipped, but because refinement favored balance and clarity over raw signal strength. Channel separation hovered around 24–26 dB, not class-leading by modern standards, but in practice, the stereo image remained expansive and stable, never collapsing into the center.

Positioned below ADC’s flagship Astrion and ZLM models, the XLM was the sweet spot—accessible enough in price to be attainable, yet engineered with the same obsessive attention to compliance and resonance control. It wasn’t the most sensitive, nor the most robust, but for those who understood its temperament, it delivered a neutrality and ease that felt more like listening through a window than through electronics. Its frequency response, flat from 10 Hz to 20 kHz with minimal deviation, avoided the hyped highs or bloated mids that plagued many contemporaries. It didn’t shout; it revealed.

Specifications

Manufacturer	ADC (Audio Dynamics Corporation)
Production Years	1970s–1980s
Original Price	$100 USD (MkII, approx.)
Cartridge Type	Induced Magnet Moving Magnet
Output Voltage @ 1kHz, 5cm/sec	5.5 mV (MkIII), 5.6 mV (MkII), 6.0 mV (MkI)
Output Balance	1.5 dB max (MkIII), 2 dB max (MkI)
Channel Separation @ 1kHz	26 dB (MkII), 24 dB (MkI)
Frequency Response	10Hz–20kHz ±1dB; 20kHz–24kHz ±1.5dB (MkIII), 1Hz–24kHz ±2dB (MkII), 20Hz–20kHz ±2dB (MkI)
Stylus Type	.0002 x .0007 inch Nude Elliptical (MkIII), Diasa Elliptical (MkII Improved), Bushed Elliptical (MkI)
Tracking Force	0.75–1.5 grams
Compliance	High (specific value not published, but consistently described as very high)
Load Impedance	47,000 ohms
Load Capacitance	300–350 pF (recommended)
Inductance	Not specified in research, but typical for induced magnet design
Cartridge Weight	Approx. 5.7 grams (similar to Astrion, typical for ADC line)
Replacement Stylus	Available NOS, but increasingly rare

Key Features

The Omni-Pivot and Induced Magnet Design

At the heart of the XLM’s magic was ADC’s Omni-Pivot system—an engineered suspension that allowed near-frictionless movement in all directions. Unlike conventional pivots that bind slightly under lateral or vertical stress, the Omni-Pivot used a compliant elastomer block to anchor the cantilever, minimizing energy loss and distortion. Paired with the induced magnet principle—where a fixed magnet induces current in stationary coils, rather than moving a magnet through coils—the moving mass dropped dramatically. This wasn’t just theory; it translated into real-world tracking. Users report the XLM navigating inner-groove congestion on dense prog rock or orchestral works with composure that belied its era. Even today, few vintage cartridges match its ability to resolve low-level detail without sounding analytical.

Stylus Evolution Across Generations

The progression from bushed elliptical to Diasa and finally nude elliptical tips marks a quiet revolution in contact precision. The early MkI’s bushed stylus, while competent, wore faster and could dull over time, softening transients. The MkII’s Diasa tip—a diamond tip bonded to a sapphire shank—offered better rigidity and heat dissipation, preserving high-frequency clarity longer. By the MkIII, ADC had moved to a fully nude elliptical diamond, eliminating the metal shank altogether. This reduced mass at the tip and improved tracking accuracy, especially in the upper treble. Owners upgrading from MkI to MkIII often describe a “lifting of the veil”—not a dramatic shift, but a refinement in air, decay, and spatial cues.

System Matching Is Non-Negotiable

The XLM’s high compliance demands respect. It thrives on low-mass tonearms—ADC’s own LMG-1 or Grace 707 were ideal partners—but can become flabby or resonant on heavier arms like the SME 3009 or older dual-weights. VTA (vertical tracking angle) adjustment is critical; too high and the sound turns bright, too low and bass bloats. Many users report best results with the arm nearly level, and VTF (vertical tracking force) dialed in around 1.0–1.2 grams. Capacitance loading also matters: 300 pF is the sweet spot, matching the cartridge’s inductance to avoid peakiness in the upper mids. Get it right, and the XLM sings. Get it wrong, and it sounds thin, unstable, or prone to skipping.

Historical Context

The XLM emerged in the early 1970s, a time when phono cartridge design was undergoing a quiet revolution. Companies like Shure, Stanton, and Pickering dominated the pro and consumer markets, but a new wave of audiophile-focused manufacturers—ADC, Grado, and Bang & Olufsen—began experimenting with low-mass, high-compliance designs. ADC, founded by Peter Pritchard (who had previously worked on GE’s variable reluctance cartridges), was at the forefront. The XLM wasn’t the first induced magnet cartridge, but it was among the most refined and widely respected. It competed directly with the Grado FGA-1 and B&O’s MMC series, both of which used similar principles, but ADC’s execution—particularly in suspension design and build quality—earned it a cult following.

By the late 1970s, ADC had expanded its lineup with the ZLM and Astrion, pushing into line-contact and higher-output designs, but the XLM remained the workhorse for serious listeners who wanted reference-level performance without the fragility or cost of the flagships. Its reputation was cemented in reviews from AudioScene Canada and Stereo Review, with one declaring it “one of the three or four phono cartridges that legitimately rank in the pantheon of all-time super cartridges.” When ADC faded in the 1980s after Pritchard left to form Sonus, the XLM became a symbol of a brief, brilliant era when American engineering challenged the Japanese and European dominance in high-end audio.

Collectibility & Value

Today, the ADC XLM is a sought-after relic, but condition is everything. A working XLM with a fresh or NOS stylus can command $250–$400 on the used market, with MkII Improved and MkIII models fetching the higher end. Gold-plated versions—rare and often factory-special—can exceed $500 if verified authentic. However, most units found online are sold “as-is” with worn styli, and replacement tips are no longer manufactured. NOS styli do appear on eBay or specialty forums, but prices range from $100–$150, and their age raises concerns about degraded elastomers or dried adhesives.

The biggest risk in buying an XLM isn’t cosmetic wear—it’s compliance degradation. The elastomer in the Omni-Pivot can harden over decades, especially if stored in heat or sunlight, leading to increased distortion and mistracking. Service technicians observe that recapping or rebuilding the suspension is possible but rare; most repairs involve stylus replacement, which requires precise alignment and calibration. Owners report that even with a new stylus, an old cartridge may not perform like new if the pivot has aged.

Before purchasing, check for free movement of the cantilever—no sticking or wobble—and verify the stylus tip under magnification. Avoid cartridges advertised as “tested” without proof of recent stylus replacement. If the seller can’t provide tracking force or output specs, assume it’s untested. For daily use, the XLM is still viable, but it’s not a plug-and-play solution. It demands a well-tuned turntable, proper loading, and attentive setup. For collectors, it’s a must-have; for casual listeners, it’s a high-maintenance treasure.
