ADC RSX (c. ?)

Name: ADC RSX
Brand: ADC

That moment when the needle settles and the groove breathes—this is the stylus that makes you forget it’s even there.

Overview

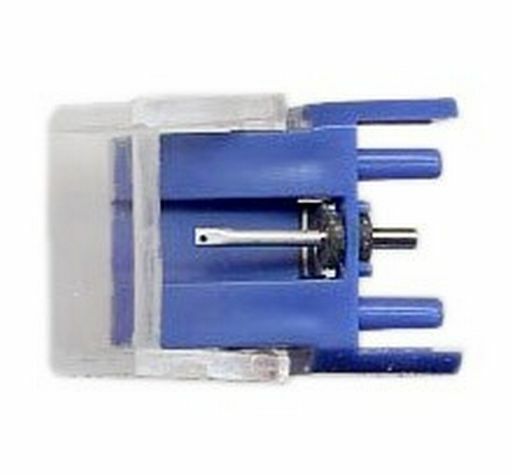

The ADC RSX isn’t a cartridge, and it’s not some forgotten flagship—no, this is the needle that kept the XLM-MKIII alive, the kind of precise, unobtrusive upgrade that vintage vinyl lovers whisper about when they’re not busy listening. It’s a replacement stylus, plain and simple, but don’t let that fool you: this little diamond-tipped marvel was built to do one job—trace the groove with surgical accuracy—and do it without wearing down your records or your patience. Designed specifically for the ADC XLM-MKIII phono cartridge, the RSX was never meant to be the star of the show. But anyone who’s heard a well-aligned XLM with a fresh RSX knows it’s the quiet hero in the cast.

It’s not just another elliptical tip slapped onto a generic cantilever. This is a "special elliptical diamond" with a .0003 x .0007 inch scanning radius, which means it dives deeper into high-frequency modulations than a standard elliptical can, pulling out detail without aggression. And because it’s nude diamond—mounted directly to the cantilever without a metal shank—it’s lighter, more responsive, and less prone to resonance. You won’t find wild claims about “ethereal soundstages” or “liquid mids” in the specs, but the owners who’ve used it? They say it just *works*. No fuss, no fatigue, just music that feels present, balanced, and honest.

The RSX wasn’t meant for 78s, and that’s fine—this was built for the LP era, for 16, 33, and 45 RPM records spinning on turntables that demanded precision. It’s the kind of part you don’t think about until it wears out, and then you realize how much you took it for granted.

Specifications

Manufacturer	ADC
Product type	Replacement stylus (needle) for a phono cartridge
Stylus tip shape	Special elliptical diamond
Scanning radii	.0003 x .0007 inch
Tip shape	0.2 x 0.7 mil Nude Diamond elliptical tip
Stylus tip finish	Highly polished
Cantilever material	Thin-wall metal alloy
Cantilever	"OmniPivot Improved" tapered cantilever with rectangular diamond shank
Tracking force range	.9 - 1.5 grams
Compatible speeds	16, 33, or 45 rpm
Not for use at	78 rpm speed
Includes	snap on protector
Original needle color is usually	BLACK
Compatible cartridge	ADC XLM-MKIII (XLMMKIII) phono cartridge

Key Features

The Diamond and the Cantilever

At the heart of the RSX is a highly polished nude diamond tip—elliptical, yes, but not just any elliptical. The 0.2 x 0.7 mil dimensions and special shaping allow it to track high-frequency grooves with less distortion than many contemporaries, and the polishing isn’t just cosmetic; it’s functional, reducing friction and wear on your vinyl. Bonded directly to a thin-wall metal alloy cantilever, the tip responds quickly to groove walls without adding mass that could dull transients. The cantilever itself uses ADC’s “OmniPivot Improved” design, tapered and fitted with a rectangular diamond shank, which ADC likely intended to reduce resonance and improve energy transfer. You won’t find lab reports on damping coefficients, but the result speaks for itself: a stylus that stays out of the way.

Engineered for Longevity and Precision

This wasn’t a disposable part. The RSX was designed for “long playing life,” and given the build, that makes sense. The combination of a durable diamond tip, precise alignment, and a tracking force range starting as low as 0.9 grams means it could glide over records without digging in. One reviewer noted that other styli they’d used “try to squat down on the record,” implying excessive vertical compliance or poor balance—but the RSX didn’t. That’s not just comfort; it’s a sign of stable, controlled tracking. At 1.25 grams on an SL-1200, one user reported “a very pleasing sound,” with cymbals rendered without harshness and vocals free of that tiring upper-midrange glare that plagues lesser tips. Another tracked at 1 gram with no issues—proof it performs well at the lower end of its range, where record wear is minimized.

Protection and Practicality

It comes with a snap-on protector, a small but meaningful detail. These tips are fragile, and a dropped cartridge without protection could mean a shattered diamond. The black color of the original needle isn’t just aesthetic—it’s likely the standard for high-contrast visibility during alignment, helping users see the tip under a microscope or alignment protractor. And while it’s not for 78s, that’s not a flaw—it’s focus. This stylus was made for the LP groove, and it does that job exceptionally well.

Collectibility & Value

The current market price for a replacement RSX stylus—specifically the LP Gear version—is $73.00. That’s not cheap for a needle, but context matters: as of August 2011, the same replacement was being sold by others for $129 and $229, so $73 looks like a relative bargain. N.O.S. (new old stock) units do appear, though they’re not common. Given that the stylus is no longer in original production, these NOS finds are the closest you’ll get to factory-fresh performance. There’s no data on common failures or maintenance quirks for the original RSX, but the fact that third-party replacements exist—and are actively used—suggests demand remains steady among XLM-MKIII owners. If you’re running an ADC cartridge from this era, the RSX isn’t just a convenience; it’s the correct heartbeat of the system.
