ADC RK8E (1970s?)

Name: ADC RK8E
Brand: ADC

That sweet, detailed high end on your old LPs? It might just depend on this tiny elliptical diamond doing its job in the groove.

Overview

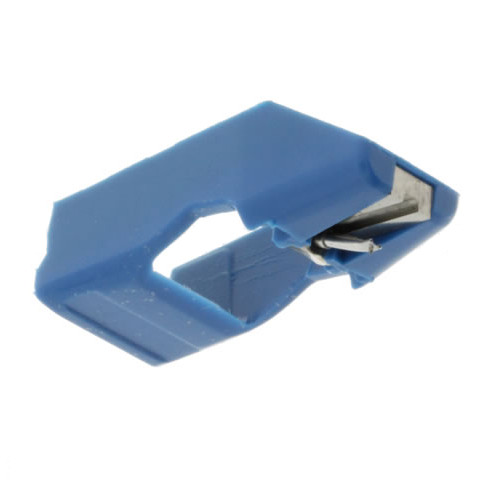

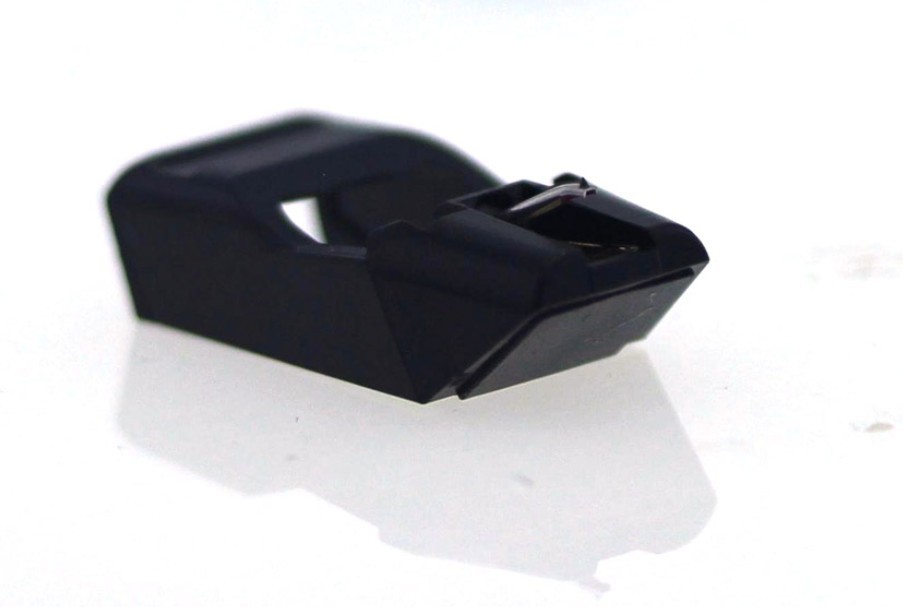

The ADC RK8E isn’t a cartridge you mount on your tonearm — it’s the business end of one, the part that actually rides the record. This is the replacement stylus designed specifically for the ADC K8E cartridge, and if you’re still spinning vinyl on a vintage setup that came with that cartridge, this little diamond-tipped wonder is what keeps your music alive. It’s not flashy, it doesn’t have blinking lights or digital outputs, but when it’s working right, you forget it’s there — which is exactly how it should be. When it’s worn out? That’s when the grit, the distortion, the skipping starts, and you remember just how critical this $40 needle really is.

ADC — Audio Dynamics Corporation, not to be confused with the medical outfit of the same initials — built a reputation in the 1970s for solid, reliable moving magnet cartridges, and the K8E was one of their workhorses. The RK8E stylus was its upgrade option, swapping out the standard spherical tip for a more precise elliptical diamond. That shape digs into the groove walls more accurately, pulling out finer detail, especially in the highs, and reducing inner-groove distortion on longer albums. Owners report cleaner cymbals, tighter vocals, and a sense of space that the conical types just can’t match. It’s not a magic wand, but for a simple swap, it’s one of the most cost-effective upgrades you can make on a vintage rig that still uses this platform.

Compatibility is wider than just the K8E. The RK8E stylus fits a whole family of ADC cartridges — including the QLM32 MK3, QLM33 Series MK3, QM30, QM33 MK3, and QLM34 MK3 — making it a useful part for anyone maintaining older ADC-based systems. It’s also listed as compatible with turntables like the ADC 1500 FG, 1600 DD, 1700 DD, 4000, and even some BSR and Sansui models (one Reddit user confirmed it fits the Sansui SR-333 just fine). If you’ve got a vintage console or portable that originally came with an ADC cartridge, there’s a solid chance the RK8E is the needle you need. Just don’t try using it on 78s — it’s rated only for 16, 33, and 45 RPM records.

One thing to watch: there’s some confusion in the marketplace between “RK8E” and “RK-8.” Listings suggest they may be different part numbers — LP Gear treats them separately, with the $34.95 price tagged to “RK-8 RK8 PAT 3.294.405,” not the RK8E — so make sure you’re buying the right one. And while the stylus itself is a precision component, the cartridge it mounts to is lightweight at 5.75 grams, so it pairs best with tonearms that can handle that mass without going out of balance. The mounting is standard ½ inch (12.7mm), so it’s not going to surprise you with oddball hardware.

Specifications

Manufacturer	ADC (Audio Dynamics Corporation)
Product type	Replacement stylus (needle) for phono cartridge
Replacement stylus for	ADC K8E cartridge
Frequency response	20 Hz- 20 kHz ± 2 dB
Output voltage	5.8 mV per channel at 1 kHz, 5 cm/sec peak recorded velocity
Channel balance @ 1 kHz	2.0 dB
Channel separation @ 1 khz	22 dB
Tracking ability	80 µm at 315Hz at recommended tracking force
Stylus type	Elliptical
Stylus tip radius	0.4 x 0.7 mil
Tracking force range	1.5 - 3.0 g
Recommended tracking force	2.25 g
Tracking angle	20°
Optimum load	47 kΩ resistance in parallel with 275 pF total capacitance.
Net Cartridge weight	5.75 g
Mounting	Standard ½" (12.7mm) mounting centers
Compatible speeds	16, 33, 45 rpm (not for 78 rpm)

Collectibility & Value

The ADC RK8E stylus currently lists for $39.95 at LP Gear, one of the more consistent vendors for vintage phono parts. It’s sometimes offered as New Old Stock (NOS), which is ideal — these styli don’t age well once installed, but sealed and stored properly, they can sit on a shelf for decades and still perform. A used ADC K8E cartridge without the stylus goes for around $19.95 on eBay, suggesting the needle itself carries most of the value. Generic replacements exist — the Pfanstiehl 4111-DET is listed as compatible — but collectors and audiophiles tend to stick with the OEM part for assurance of fit and performance. There’s no data on common failure modes or maintenance, but as with any elliptical diamond, gentle handling and proper tracking force are key. Misalignment or excessive force will wear it prematurely, and once it’s gone, it’s not rebuildable — you replace the whole stylus assembly.
