Acoustic Research TSW-610 (1989)

The Acoustic Research TSW-610 is a floor-standing loudspeaker introduced in 1987 as part of the Total Spectrum Wave (TSW) series. Designed during a transitional period for Acoustic Research, the TSW-610 reflects the company’s effort to modernize its product line while preserving its legacy of acoustic suspension engineering. With a balanced sound signature and high build quality, the TSW-610 remains a respected choice among vintage audio enthusiasts seeking accurate, uncolored sound reproduction.

Specifications

Feature	Specification
Model	TSW-610
Year of Production	1987–1994
Type	2-way, floor-standing
Driver Configuration	12-inch woofer, 1-inch dome tweeter
Enclosure Design	Acoustic suspension
Impedance	4 ohms
Sensitivity	89 dB
Power Handling	100W RMS (2 channels)
Frequency Response	38 Hz – 20 kHz (±3 dB)
Crossover Frequency	2.2 kHz
Terminals	Bi-wire capable
Finish Options	Walnut veneer, black ash veneer
Dimensions (H×W×D)	38" × 12" × 16" (96.5 × 30.5 × 40.6 cm)
Weight	62 lbs (28.1 kg) per speaker

Historical Context

The TSW-610 was a flagship model in Acoustic Research’s Total Spectrum Wave series, launched in the late 1980s to revitalize the brand’s image amid increasing competition from both domestic and international speaker manufacturers. While earlier AR models like the legendary AR-3 and AR-4ax were known for their compact acoustic suspension designs, the TSW series embraced larger cabinets and updated driver technology to deliver extended bass response and higher output capability.

Despite these changes, the TSW-610 remained true to AR’s core acoustic principles—particularly the use of acoustic suspension (sealed box) design, which ensures tight, controlled bass and excellent transient response. The TSW-610 was marketed as a high-fidelity speaker suitable for both music and home theater applications, a forward-looking approach for its time.

The TSW series also featured modern aesthetics compared to earlier AR models, with gently curved cabinets and fine wood veneers that appealed to contemporary tastes. However, by the mid-1990s, shifting ownership of the Acoustic Research brand and evolving market trends led to the discontinuation of the TSW line.

Sound Signature

The TSW-610 delivers a balanced and neutral sound profile, emphasizing accuracy over sonic embellishment. Its 12-inch woofer provides deep, articulate bass without bloat, thanks to the acoustic suspension alignment. The midrange is clear and transparent, making it ideal for vocal and acoustic instrument reproduction. The 1-inch soft dome tweeter offers smooth high-frequency extension without harshness or sibilance.

This speaker excels in critical listening environments where faithful sound reproduction is paramount. It performs well with a variety of amplifiers, particularly those with a neutral or warm character that complement its transparent nature.

Maintenance and Restoration Tips

Like many vintage speakers, the TSW-610 may require maintenance after decades of use. Common issues include:

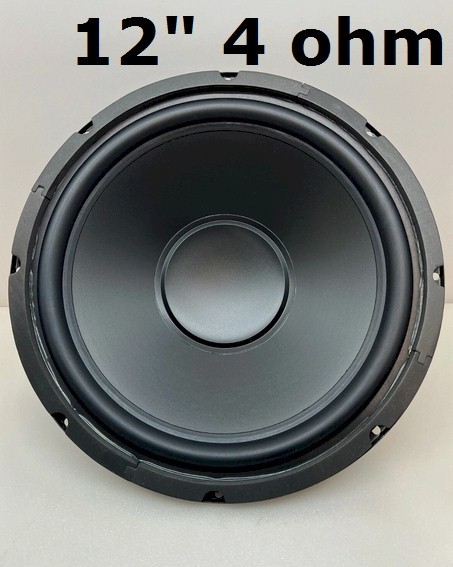

Foam Surround Degradation: The foam surrounds on the 12-inch woofers are prone to drying and crumbling over time. Replacing them with modern rubber or foam kits is a common and effective restoration step.
Crossover Component Aging: Electrolytic capacitors in the crossover network may degrade, leading to loss of clarity or tweeter damage. Replacing these with modern, high-quality capacitors can restore original performance.
Grille Fabric and Foam: Original grilles may have deteriorated fabric or foam backing. Replacement materials are available from specialty audio restoration suppliers.
Binding Post Corrosion: Check bi-wire terminals for oxidation. Clean with contact cleaner and consider upgrading to higher-quality posts if needed.

Regular inspection and preventive maintenance can extend the life of these speakers significantly. When restored properly, the TSW-610 can deliver performance that rivals many modern designs.

Market Value and Collectibility

The Acoustic Research TSW-610 has a moderate collectibility rating of 6/10. While not as iconic as the vintage AR-3a, it holds a loyal following among enthusiasts of accurate, non-colored sound. Well-maintained pairs in attractive walnut or black ash finishes are most desirable.

Current Market Value: $150–$300 per pair, depending on condition, originality, and geographic location. Fully restored units may command higher prices, especially when sold with documentation or original packaging.

Conclusion

The Acoustic Research TSW-610 stands as a bridge between AR’s storied past and its modern ambitions. Combining classic acoustic suspension design with updated driver technology and refined aesthetics, it offers a compelling blend of accuracy, build quality, and vintage charm. For audiophiles who appreciate transparent sound and engineering integrity, the TSW-610 remains a worthy addition to any vintage audio setup.
