Acoustic Research AR-12 (1974)

The Acoustic Research AR-12 is a classic 3-way bookshelf loudspeaker introduced in 1974 as part of Acoustic Research's esteemed Classic Series. Designed during a golden era of high-fidelity audio, the AR-12 bridges the gap between entry-level and high-end models, offering exceptional sound quality and engineering integrity. With its acoustic suspension design, the AR-12 delivers tight, accurate bass and a natural, balanced tonal character that remains highly regarded by vintage audio enthusiasts.

Specifications

Feature	Specification
Model	AR-12
Year of Production	1974–1977
Configuration	3-way, bass-reflex equivalent via acoustic suspension

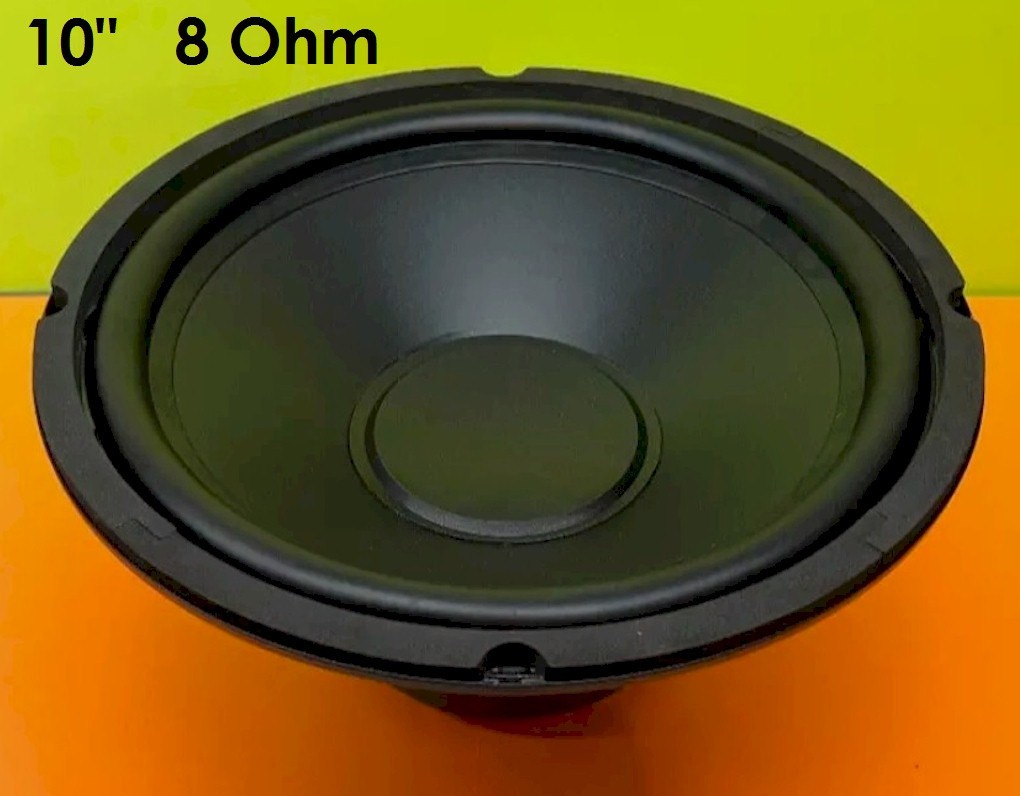

Woofer	10-inch (25 cm) with foam surround
Midrange	1.5-inch dome driver with foam surround
Tweeter	0.75-inch dome tweeter
Impedance	8 ohms (nominal)
Sensitivity	88 dB (1W/1m)
Power Handling	Up to 100W RMS (per pair, stereo)
Frequency Response	40 Hz – 20 kHz (typical)
Enclosure Type	Acoustic suspension (sealed)
Cabinet Finish	Walnut veneer
Dimensions (H×W×D)	22.5" × 12" × 10.5" (57 × 30.5 × 26.7 cm)
Weight	42 lbs (19 kg) per speaker

Historical Context

The AR-12 was developed during a pivotal time for Acoustic Research, a company founded by Dr. Edgar Villchur and renowned for pioneering the acoustic suspension speaker design in the 1950s. This technology allowed for deeper, more controlled bass from a compact sealed cabinet—revolutionizing speaker engineering.

As part of the Classic Series, the AR-12 was positioned above the popular AR-3 and AR-5 models but below the flagship AR-10pi. It combined advanced driver materials and a refined crossover network to deliver a transparent and lifelike sound. The AR-12 was particularly praised for its neutral sound signature, tight bass response, and smooth midrange, making it a favorite among critical listeners and audiophiles of the era.

Its walnut veneer cabinet and compact footprint made it both sonically and visually appealing, fitting well in domestic environments without sacrificing performance. The AR-12 exemplifies AR’s commitment to scientific design and accurate sound reproduction, reflecting the brand’s legacy in high-fidelity audio.

Sound Signature

The AR-12 delivers a neutral, balanced, and detailed listening experience. Its 3-way design ensures excellent driver separation and clarity across the frequency spectrum:

Bass: Tight, articulate, and well-controlled thanks to the acoustic suspension design. Reaches down to 40 Hz with authority for its size.
Midrange: Slightly warm and natural, ideal for vocals and acoustic instruments. The 1.5-inch dome midrange reduces coloration and enhances imaging.
Treble: Clean and extended, with the 0.75-inch dome tweeter providing smooth high-frequency response without harshness.

Overall, the AR-12 is celebrated for its natural sound reproduction, making it well-suited for jazz, classical, and vocal-centric genres.

Maintenance and Restoration Tips

Due to their age, AR-12 speakers often require maintenance to restore optimal performance:

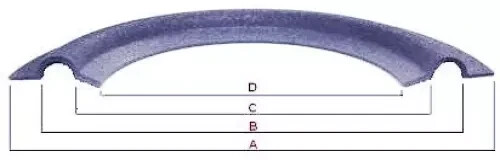

1. Foam Surround Replacement

The woofers and midrange drivers use foam surrounds that typically degrade after 40+ years.
Symptoms include distorted bass, buzzing, or complete driver failure.
Solution: Re-foam kits are widely available. Professional reconing is recommended for best results.

2. Crossover Capacitor Upgrade

Original electrolytic capacitors in the crossover network may dry out or fail.
This can lead to dull sound, loss of highs, or tweeter damage.
Solution: Replace aging capacitors with modern polypropylene or film types for improved clarity and reliability.

3. Cabinet Care

The walnut veneer may show wear, scratches, or fading.
Clean gently with a wood-safe polish; avoid silicone-based products.
Consider professional refinishing for significant damage.

4. Grille Fabric

Original grilles may be torn or discolored.
Replacement fabric in period-correct weaves is available from specialty audio restoration suppliers.

Market Value and Collectibility

Market Value: $150–$400 per pair, depending on condition, originality, and restoration quality.
Collectibility Rating: 6/10

While not as rare or iconic as the AR-3a, the AR-12 holds steady appeal among vintage audio collectors for its performance and historical significance. Fully restored pairs in original condition command higher prices.

Conclusion

The Acoustic Research AR-12 stands as a testament to 1970s high-fidelity engineering. Combining innovative acoustic suspension design with a refined 3-way driver array, it delivers a transparent and engaging listening experience. With proper restoration, the AR-12 remains a competitive choice for vintage audio enthusiasts seeking accurate, natural sound in a classic package. Whether as a restoration project or a nostalgic addition to a vintage setup, the AR-12 continues to honor Acoustic Research’s legacy of excellence.
